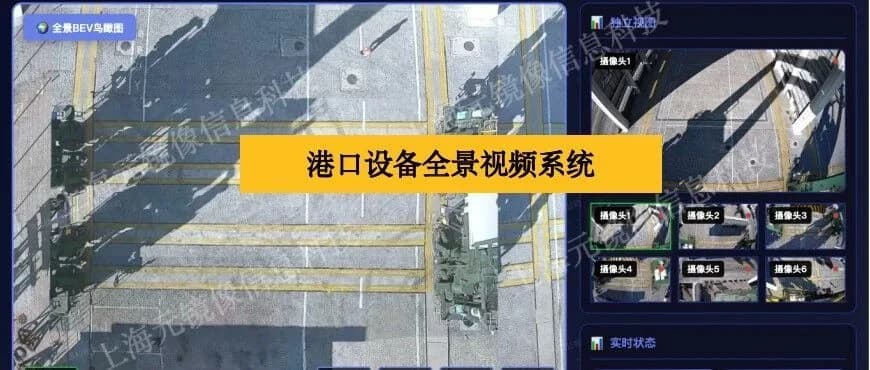

Port Equipment Panoramic Video System
Back to Industry SolutionsINDUSTRY SOLUTION

Port Equipment Panoramic Video System Solution

Yard Crane Cabin BEV Panoramic System · Building Equipment-Level One-Screen Safety View

Through digital, intelligent, and video-based presentation, fuse multiple intelligent video devices installed at port equipment operation sites into a BEV panoramic view, assisting operators in understanding the positional relationships of spreaders, rails, lanes, yards, and vehicles, compensating for traditional operational blind spots.

BEV
Panoramic Bird's-Eye
Multi-Channel
Video Fusion
Alerts
Proactive Detection
B/S or C/S
Flexible Integration

Industry Pain Points

01
High-Altitude Blind Spots

Crane and gantry crane operators' views are obstructed by spreaders, container stacks, and equipment structures, making operational risks hard to detect in time.

02
Multi-Screen Fragmentation

Equipment body, spreader, rail, yard, and lane views are spread across multiple surveillance feeds, requiring frequent switching by dispatchers.

03
Mixed Pedestrian-Vehicle Traffic

Trucks, mobile machinery, and maintenance personnel cross paths in equipment operation zones. Traditional video cannot form continuous risk assessment.

04
Insufficient Coordination

Video, PLC, TOS, work orders, and alert data are separated, resulting in low efficiency for incident positioning, review, and remote handling.

Solution

Build a unified BEV panoramic video system for port equipment cabins and dispatch centers, completing video stitching, status overlay, alert notifications, and platform integration.

Port Equipment Panoramic BEV Video System Solution

Applicable to yard cranes, quay cranes, portal cranes, ship unloaders and other port equipment, uniformly resolving driver blind spots, multi-screen fragmentation, operational risk detection, and platform coordination.

✓Real-time multi-camera stitching for single equipment
✓Unified display of spreader, rail, lane, and yard key areas
✓AI alerts for personnel, vehicles, obstacles, and intrusions
✓Panoramic video output to cabin display, remote console, and VMS
✓PLC, TOS, work orders & alert point overlay
✓Spatial presentation of equipment attitude, spreader position, lane occupancy
✓Command center digital twin display, TOS full-process management & event review workbench

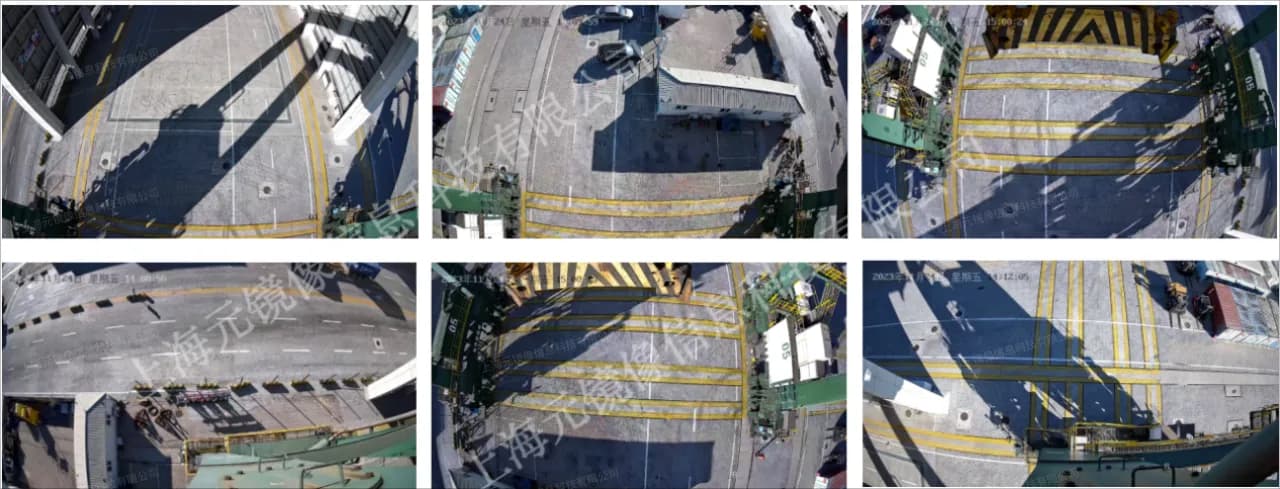

Before · Multiple Independent Video Feeds
Before · Multiple Independent Video Feeds

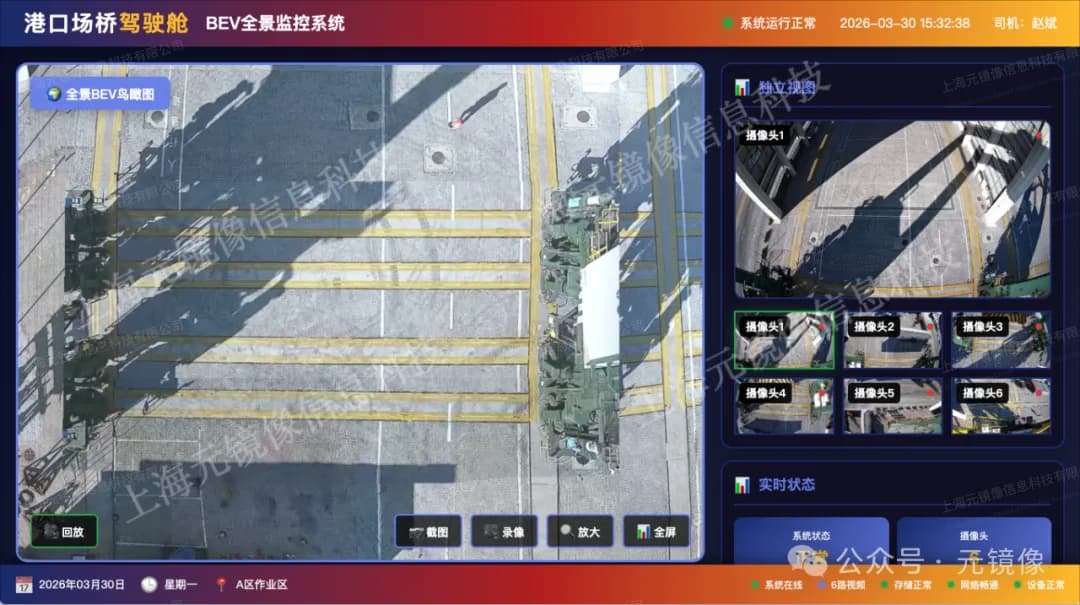

After · Panorama Integrated into System
After · Panorama Integrated into System
Reference Period: Two weeks (including site survey, access, calibration & stitching debugging)
View Product Details →

System Architecture

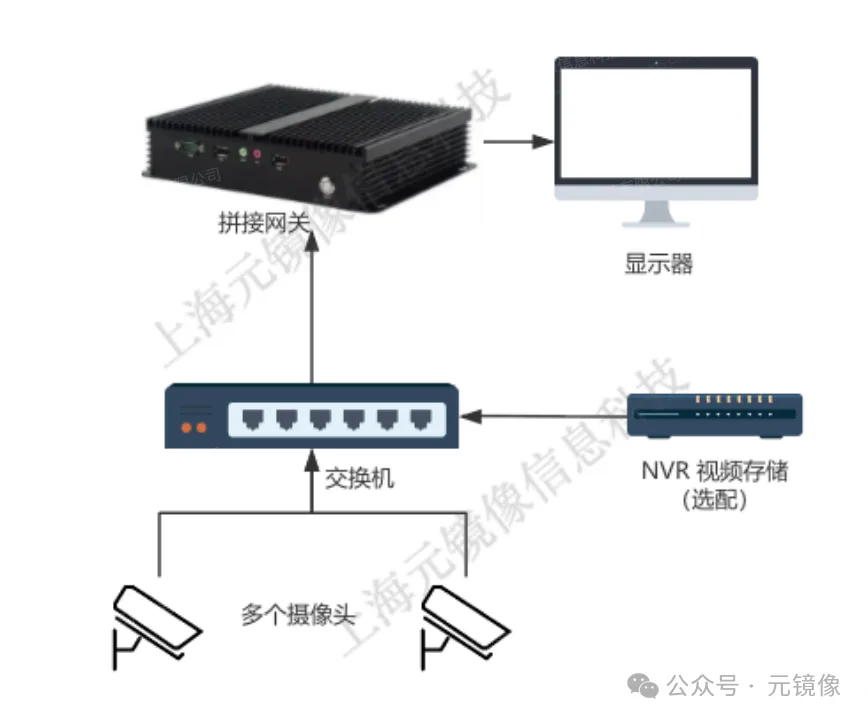

Port Equipment Panoramic Video System Architecture
Cameras + Switch + Stitching Gateway + Display + Optional NVR Storage
01

Video Capture

Deploy multiple specialized intelligent video devices at key positions on yard cranes, quay cranes, and portal cranes, covering spreaders, lanes, rails, and work areas.

02

Stitching & Fusion

Complete multi-camera calibration, distortion correction, BEV bird's-eye view conversion, and low-latency fusion through stitching gateways and fusion servers.

03

Storage & Coordination

Optional NVR video storage, integrated with VMS, TOS, PLC, SCADA, and alert systems for complete operational recording.

04

Cockpit Display

Output panoramic views and alert notifications through cabin high-brightness displays, B/S or C/S players, and command center large screens.

Equipment Scenarios

Applicable to quay cranes, ship unloaders, ship loaders, portal cranes, yard cranes, reach stackers, bucket-wheel stackers, and other large port equipment.

Quay Crane / Ship-to-Shore Crane

Fuses multi-angle views of trolley, spreader, sea-side, land-side, lane, and hatch to assist operators in observing spreader attitude, container position, and truck alignment.

✓Spreader Attitude Panorama
✓Truck Alignment Assistance
✓Sea/Land-Side Blind Spot Monitoring

Yard Crane / Rail-Mounted Gantry

Stitches yard container areas, rail sides, transfer lanes, and work slots into a continuous view, improving yard equipment automation and remote supervision.

✓Container Area Panoramic Coverage
✓Rail Obstacle Detection
✓Remote Operation Assistance

Portal Crane / Ship Unloader

Builds a panoramic video system around the boom, grab, hopper, conveyor, and vehicle loading area, reducing collision, spillage, and boundary-crossing risks in bulk operations.

✓Grab Path Monitoring
✓Hopper Area Surveillance
✓Equipment Interlock Alerts

Mobile Machinery / Truck Coordination

Unified display of reach stackers, container stackers, trucks, and personnel traffic, helping dispatch centers assess equipment coordination efficiency and on-site safety.

✓Pedestrian-Vehicle Segregation Alerts
✓Equipment Trajectory Playback
✓Dispatch Situational Dashboard

Software Capabilities

Panoramic Bird's-Eye View

Displays positional relationships of portal cranes, containers, vehicles, and traffic areas from a BEV perspective.

Single-Channel Preview

Retains the ability to view any camera's raw feed for drivers and maintenance personnel to verify details.

Anomaly Alerts

Customizable pop-up alerts for collision risk,violation operations, personnel intrusion, and equipment anomalies.

Custom Integration

Supports B/S or C/S players, or outputs stitched panoramic video streams for integration into existing platforms.

Panoramic View

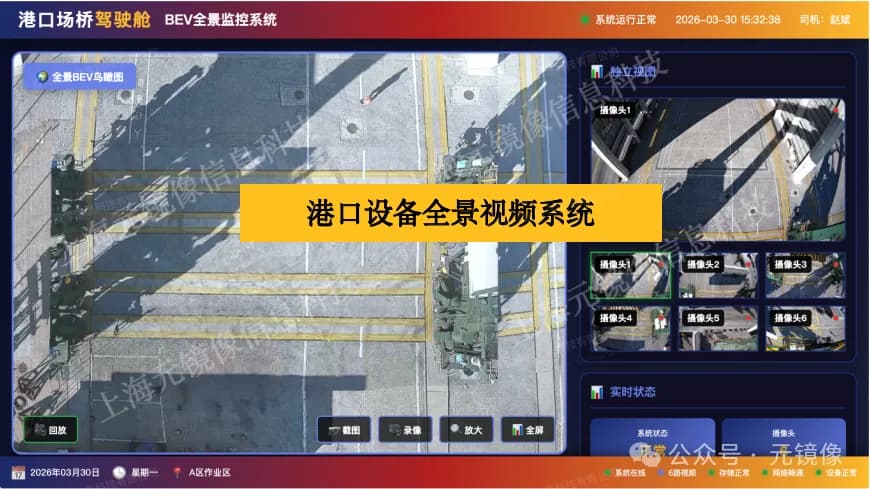

Port Equipment BEV Panoramic Video System Interface
Port Yard Crane Cabin · BEV Panoramic Video System

Panoramic View

Compress the entire equipment work area into one actionable view

The system fuses multiple feeds from the equipment body, under-spreader, lanes, rail sides, yard edges, and personnel passages into a continuous view, overlaying safety zones, operation status, and alert annotations, so site risks no longer scatter across multiple windows.

One Screen
Equipment Overall Status
Multi-Source
Video & Data Fusion
Low Latency
Remote Operation Assistance
Traceable
Event Playback & Review

Stitching Cases

01

Case 1: Port Portal Crane Cabin Before/After Stitching

Before stitching: multiple independent video feeds requiring screen-by-screen assessment of work area status. After stitching: panoramic view integrated into cabin system, main view displaying BEV bird's-eye with synchronized independent views, alerts, and real-time status.

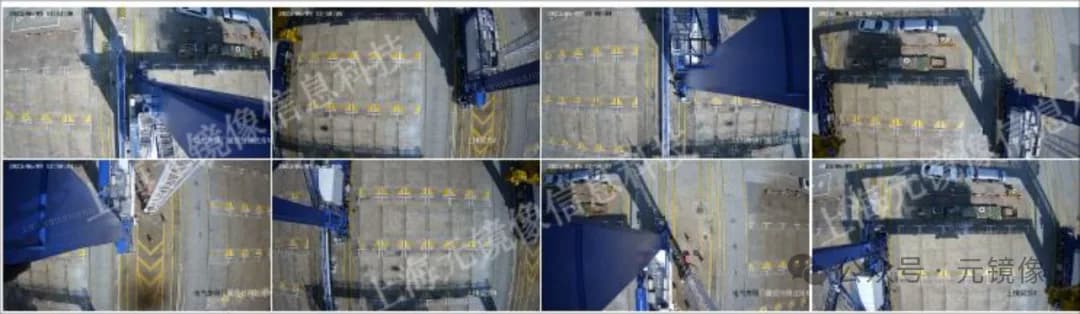

Before · Multiple Independent Video Feeds
Before · Multiple Independent Video Feeds

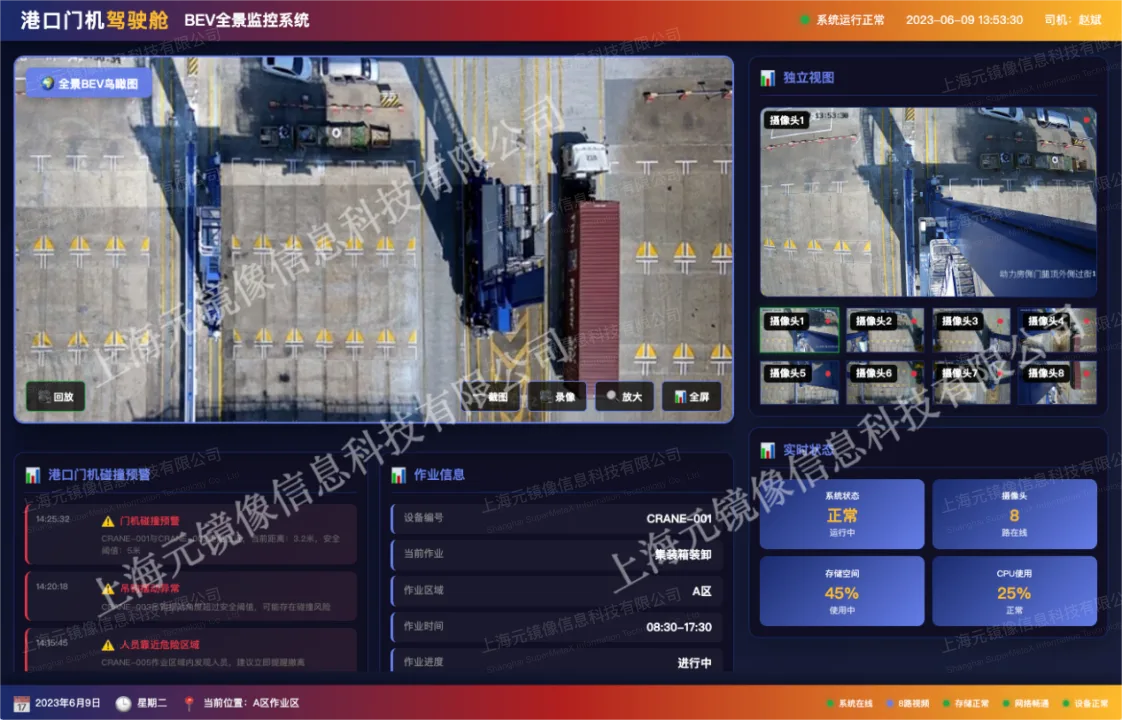

After · Panorama Integrated into Cabin System
After · Panorama Integrated into Cabin System
02

Case 2: Eight-Channel Video Before/After Stitching

Same scene — before stitching, feeds dispersed across eight channels; after stitching, outputs one continuous panoramic video showing work areas, lanes, and equipment positions more intuitively.

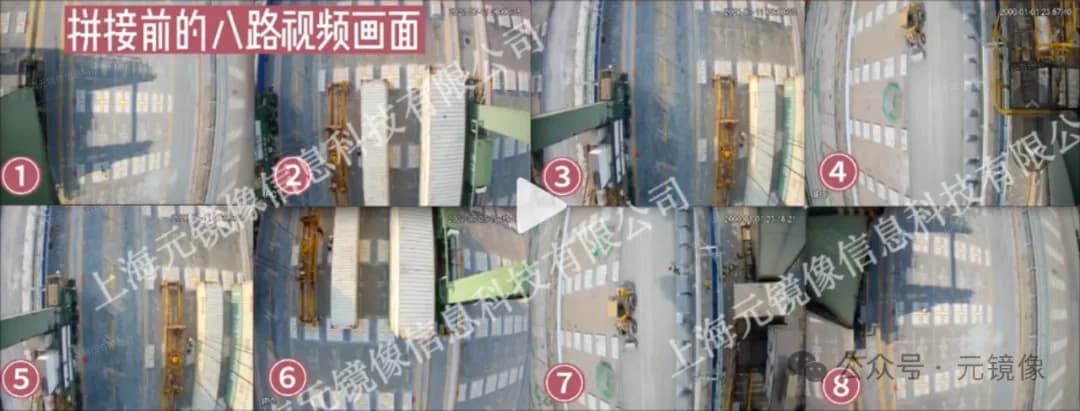

Before · Eight Independent Channels
Before · Eight Independent Channels

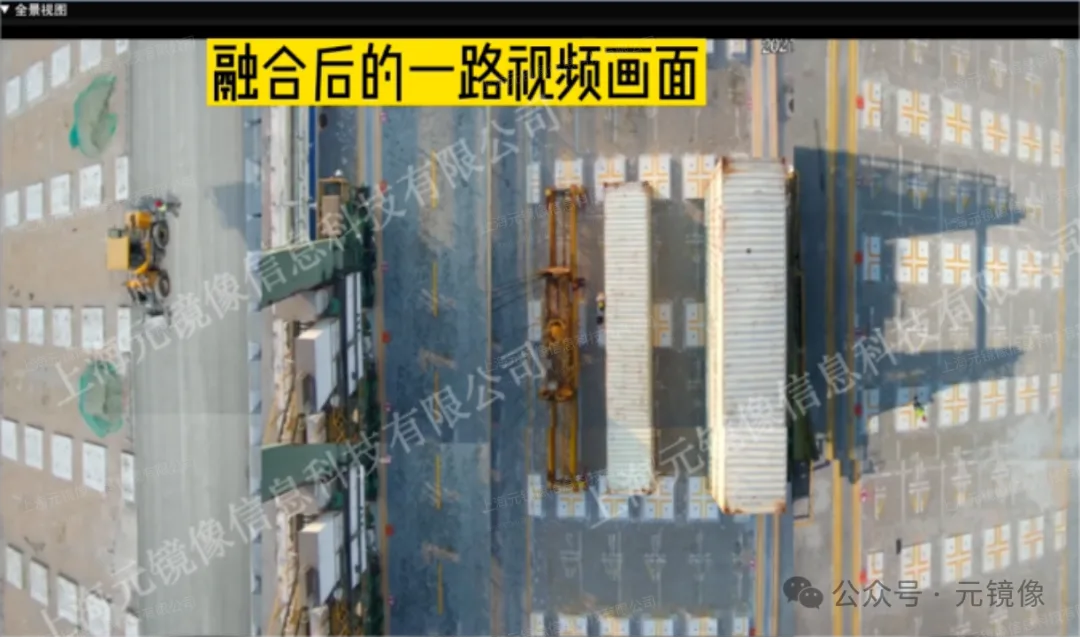

After · One Continuous Panoramic Video
After · One Continuous Panoramic Video

Feature List

FeatureSupported
Real-time multi-camera video stitching✓
Equipment perimeter panoramic coverage✓
Panoramic BEV bird's-eye view✓
Single-channel raw feed preview✓
Spreader / lane / rail key area annotation✓
AI personnel, vehicle, obstacle & intrusion detection✓
TOS / PLC / equipment status data overlay✓
Equipment attitude, work order & alert spatial positioning✓
Port equipment command center large-screen display✓

Implementation Path

1

On-site location survey and existing camera asset inventory

2

Design panoramic views, blind spot coverage, and edge gateway deployment by equipment type

3

Complete video calibration, stitching debugging, key area annotation, and AI rule configuration

4

Integrate with VMS / TOS / PLC / SCADA / positioning & alert systems

5

Deliver driver-side, dispatcher-side, command center large-screen, and event review capabilities

Value

✓

Upgrade from "multi-screen monitoring" to "single-equipment one-screen panorama," reducing operator and dispatcher cognitive load

✓

Cover traditional blind spots including spreaders, lanes, rails, and yard edges, improving operational safety margin

✓

Provide a stable video foundation for remote operation, automated terminals, and centralized equipment control

✓

Correlate video, equipment status, work orders, and alert locations on the same screen

✓

Support event playback and trajectory review, improving accident investigation, maintenance inspection, and training efficiency

✓

Reuse existing cameras and security platforms for phased construction by equipment, yard, or terminal

Get the Port Equipment Panoramic Video System Solution

Offering equipment site assessment, camera reuse design, edge stitching deployment, platform integration, and delivery commissioning services
