CORE PRODUCT

AR Panoramic Video Stitching System

PanoStitch Live

One Screen, Total Situational Awareness

Powered by our proprietary multi-camera real-time stitching algorithm, seamlessly composites multiple camera feeds into a single ultra-HD panoramic view. Supports up to 156 channels on a single server, with latency within 200 ms. Cameras are mounted, streams are connected, and the software performs geometric alignment automatically — no calibration targets or per-channel manual tuning are required on site.

Book a DemoContact Us
Industrial ManufacturingRail TransitCoal Mine SafetySmart WaterwayPort & TerminalWarehousing & Logistics
📹
156
Max Channels (Single Site)
🖥
8K
Ultra-HD Output
⚡
200ms
Latency (within)
🎯
200+
Projects Completed

System Overview

The Panoramic Video Stitching System is based on our proprietary multi-camera real-time stitching algorithm, seamlessly compositing multiple camera feeds into a complete ultra-HD panoramic view — eliminating fragmented screens, blind spots, and operational complexity. Supports panoramic, surround-view, and linear stitching modes, widely applied in industrial manufacturing, rail transit, coal mine safety, and more.

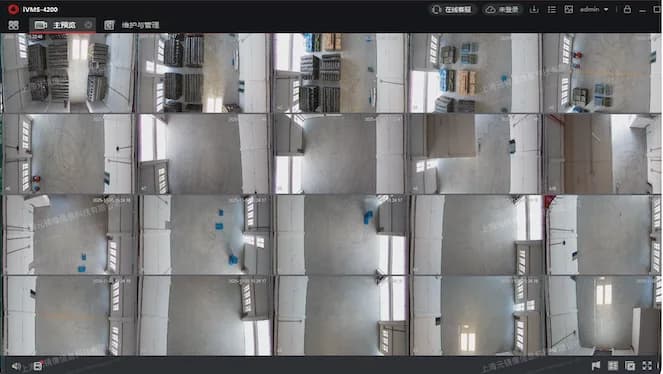

Warehouse multi-camera fragmented view before stitching
Before · 20-channel split screen

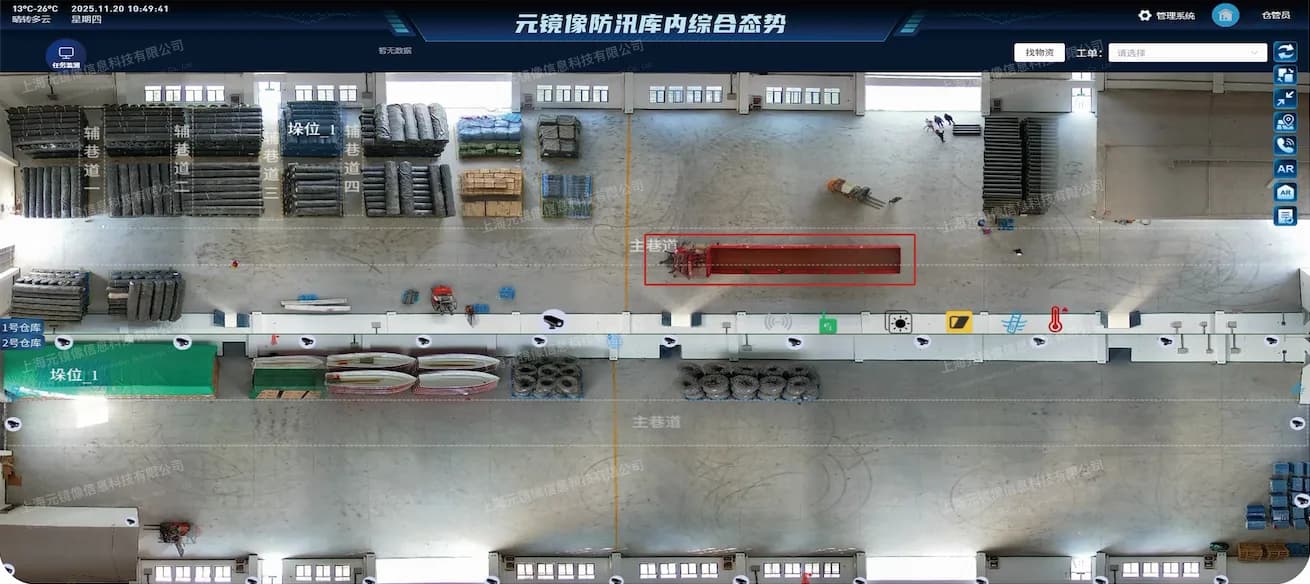

Warehouse panoramic video stitching result — seamless wide-angle view
After · Single panoramic feed

Solution Comparison

⚠️ Traditional Surveillance✅ Panoramic Stitching
✕Multi-screen switching, no global view✓All cameras stitched into one panoramic screen
✕Blind spots everywhere, critical info missed✓Zero blind spots — 360° full coverage
✕Fragmented view, weak situational awareness✓Immersive perspective, total situational awareness
✕Complex to operate, slow incident response✓Smart annotation, key info overlaid automatically

Stitching Tool · 元镜像 PanoStitch Live

Self-developed Real-Time Video Stitching Software

Compatible with leading domestic and international camera brands — Hikvision, Dahua, Uniview, Axis, Bosch, Sony, Hanwha and more. Supports GB28181, ONVIF, RTSP, RTMP, NDI and other major global protocols. Outputs stitched panoramic streams in RTSP, RTMP, FLV, HLS, and WebSocket formats. Flexible integration with domestic and international platforms alike.

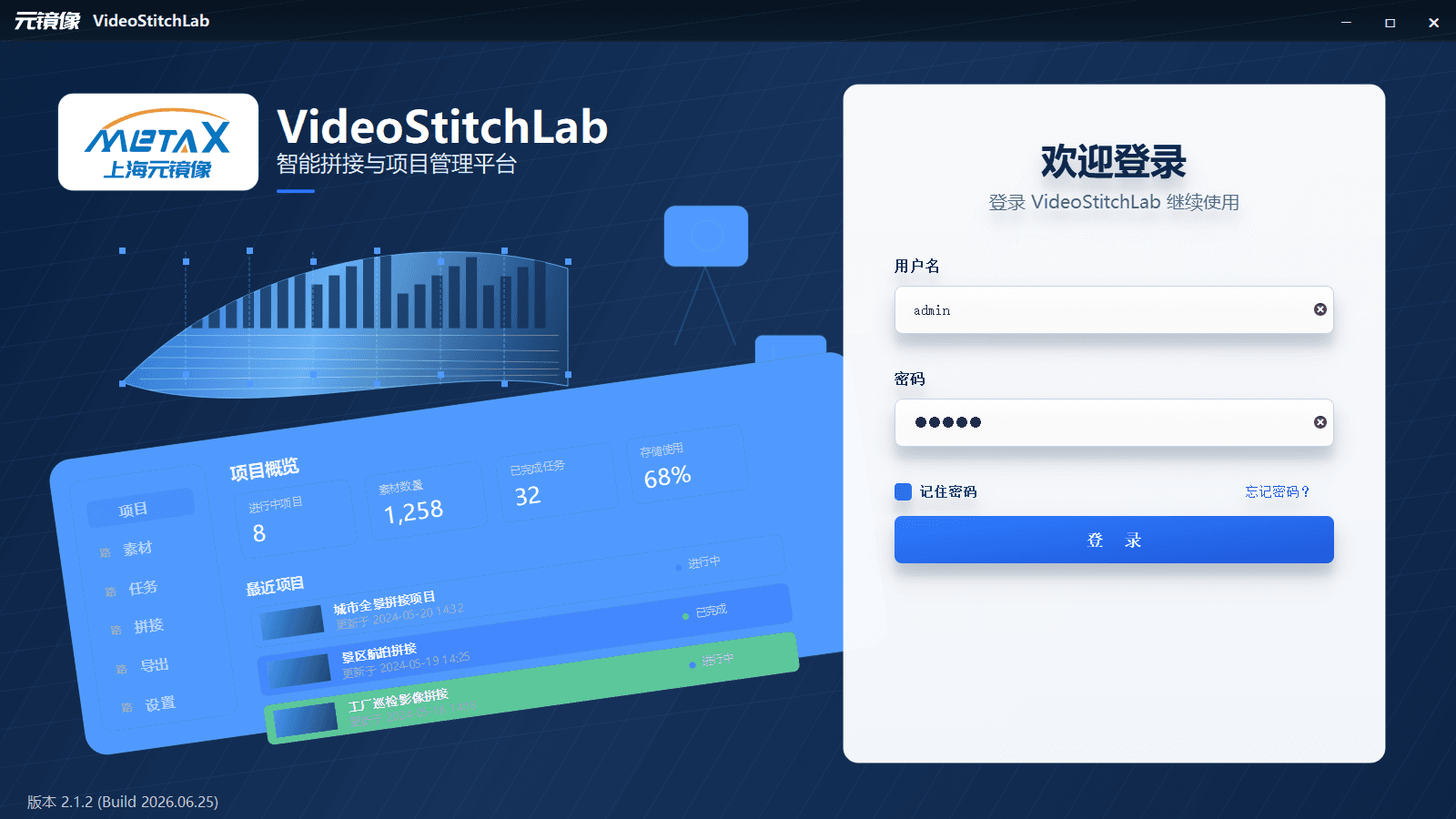

PanoStitch Live stitching management interface
PanoStitch Live · Interface

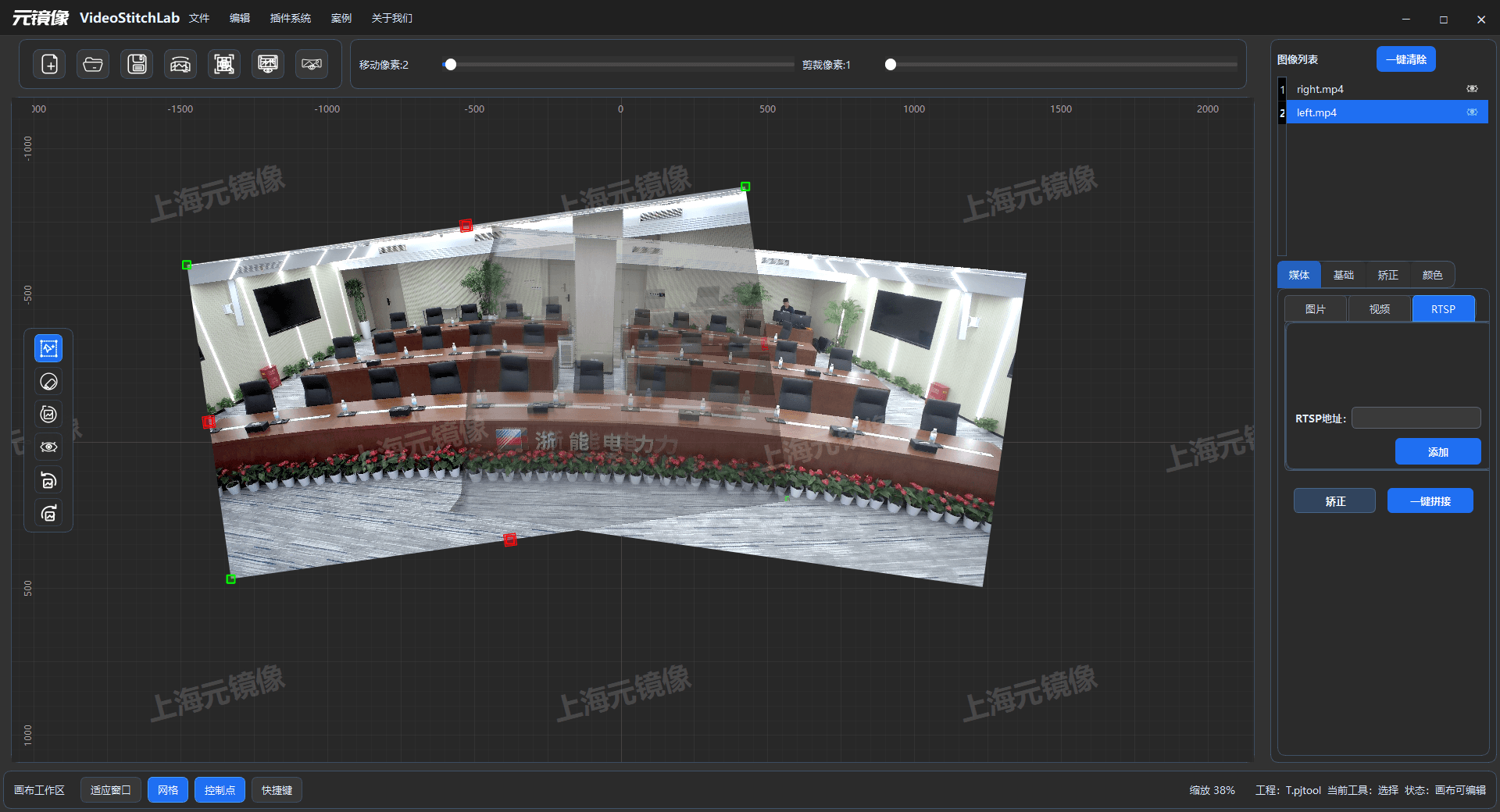

PanoStitch Live panoramic stitching preview
PanoStitch Live · Stitching Preview
LIVE DEMO · Port Panoramic Stitching
Before · 8-channel split view

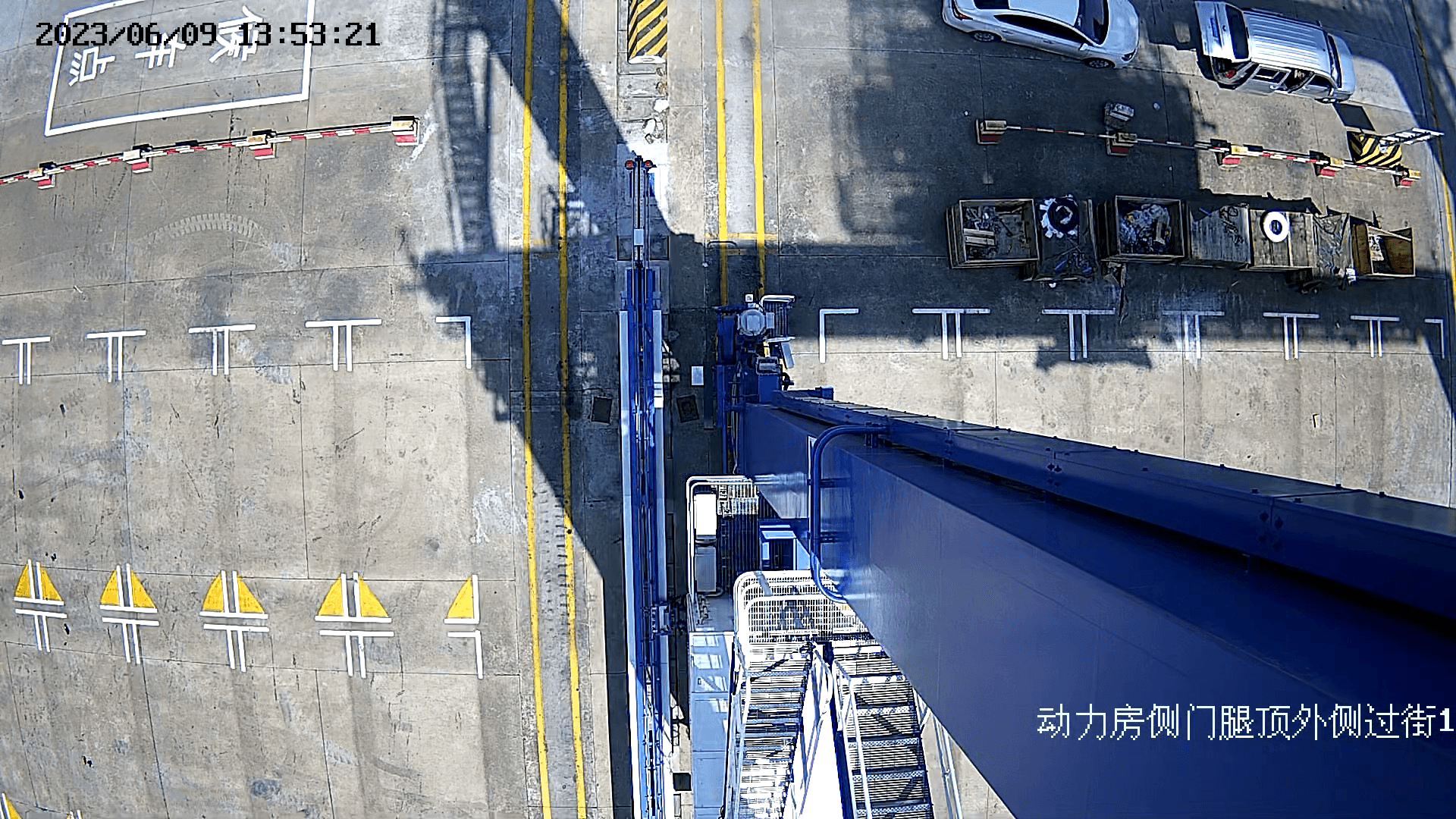

Port camera channel 1
CH1
元镜像 SuperMetaX

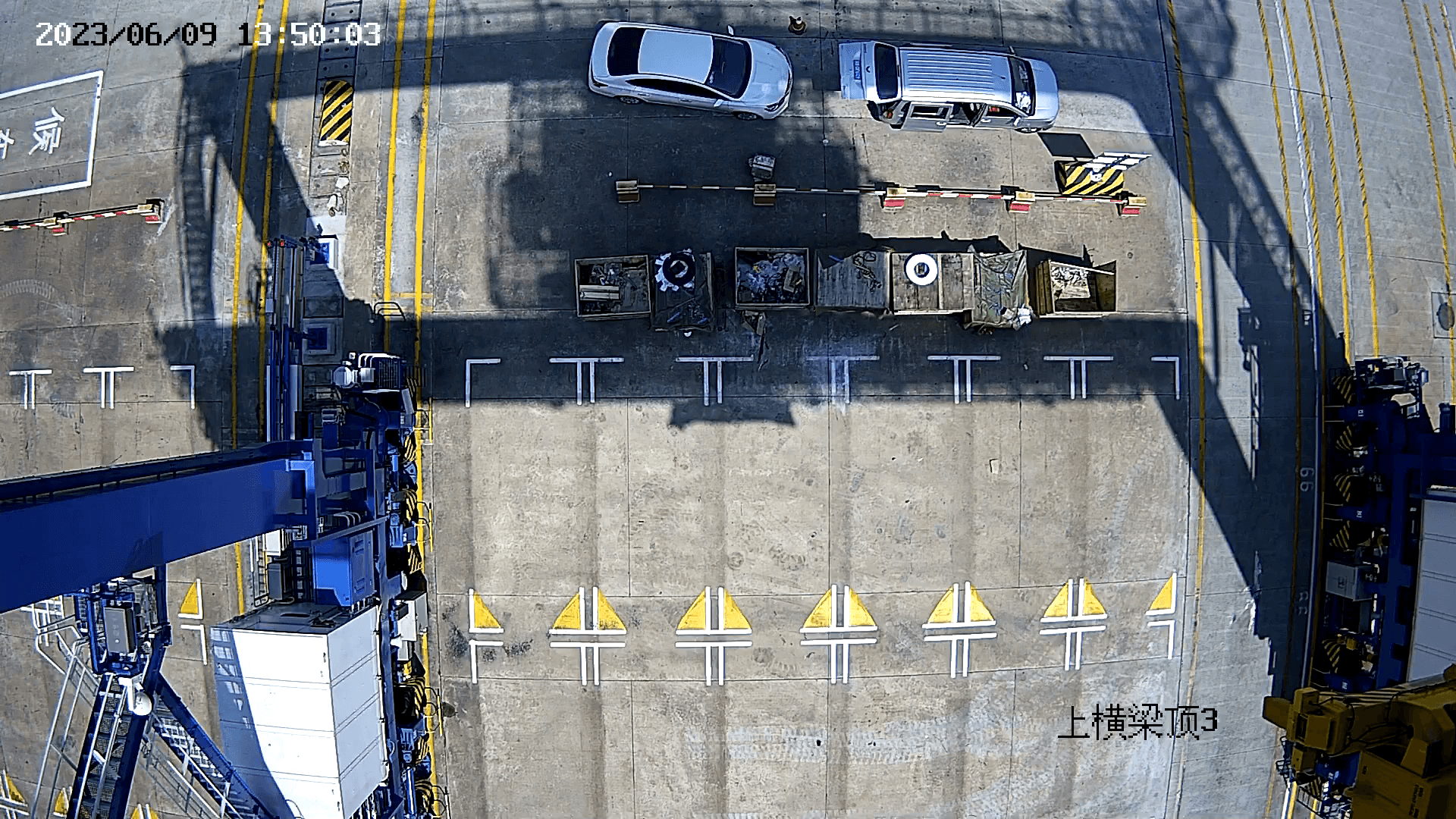

Port camera channel 2
CH2
元镜像 SuperMetaX

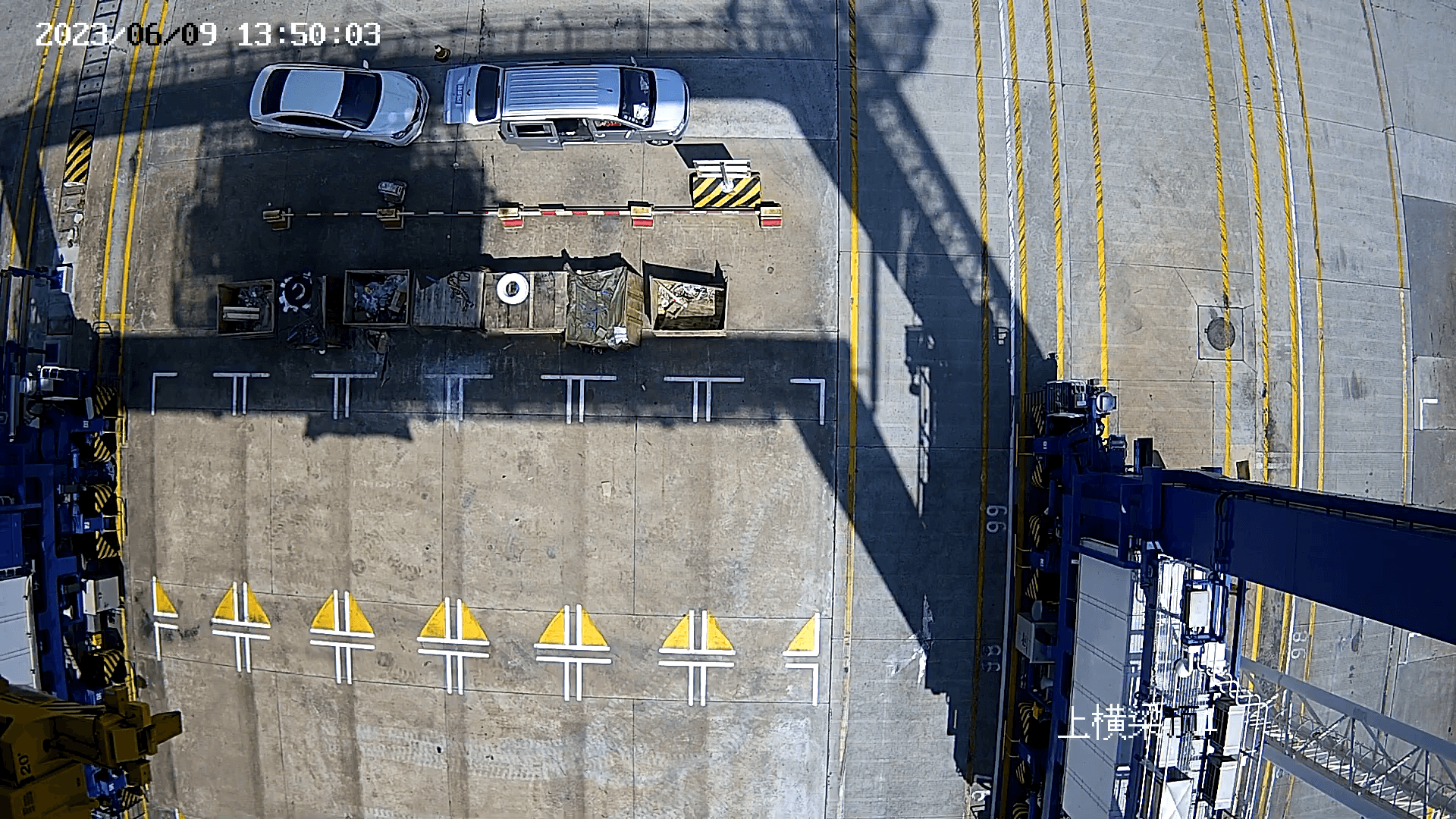

Port camera channel 3
CH3
元镜像 SuperMetaX

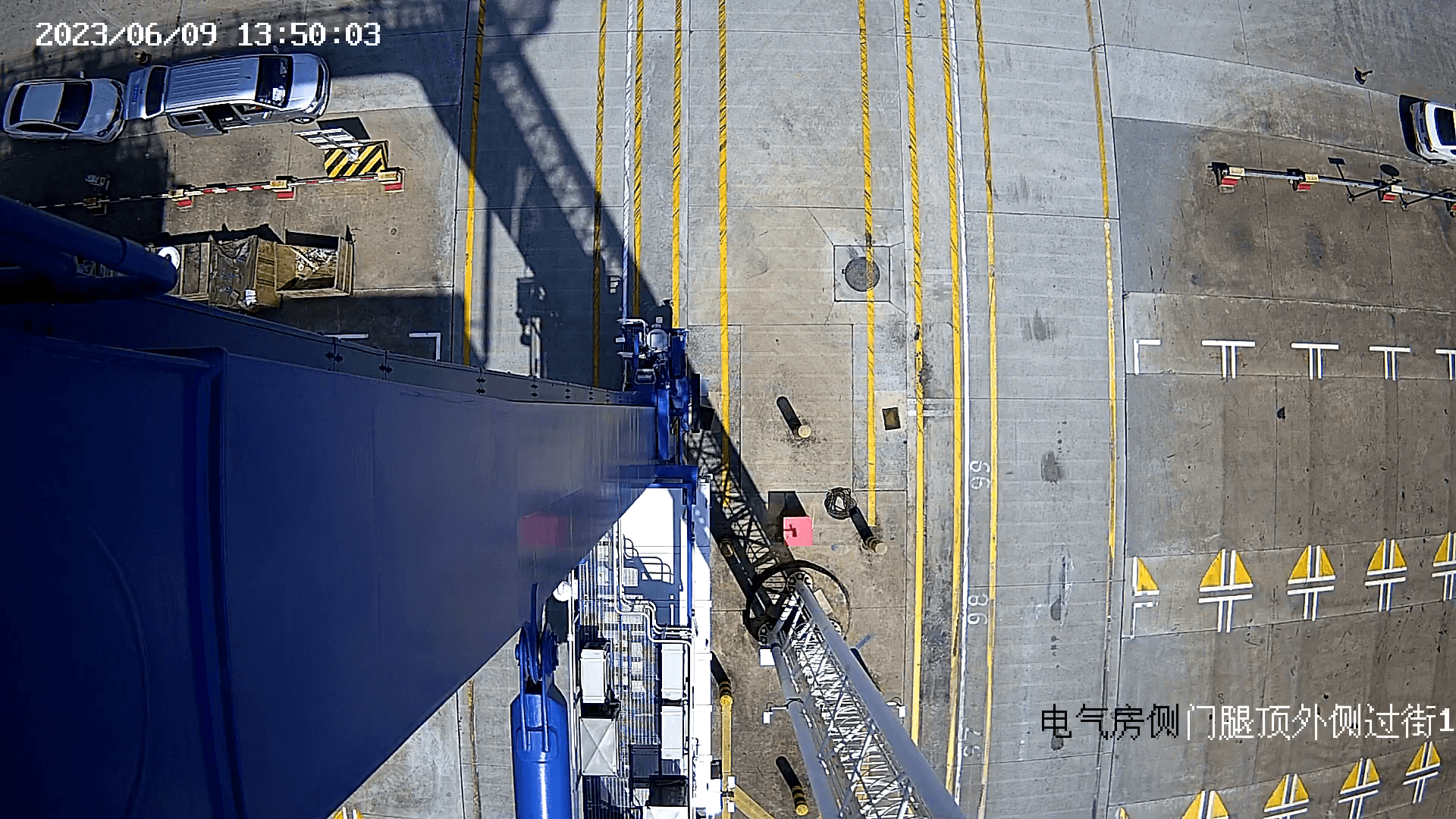

Port camera channel 4
CH4
元镜像 SuperMetaX

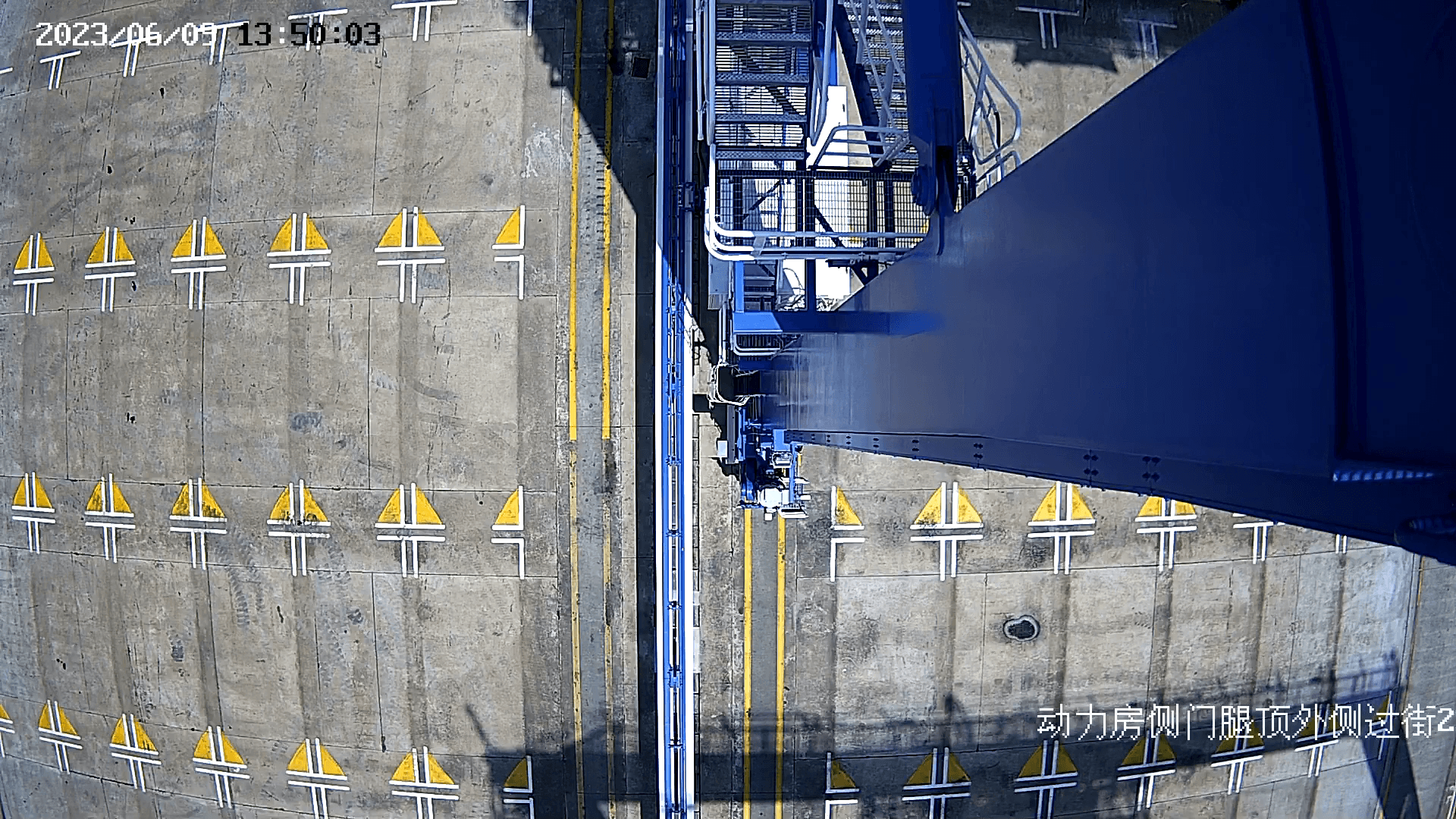

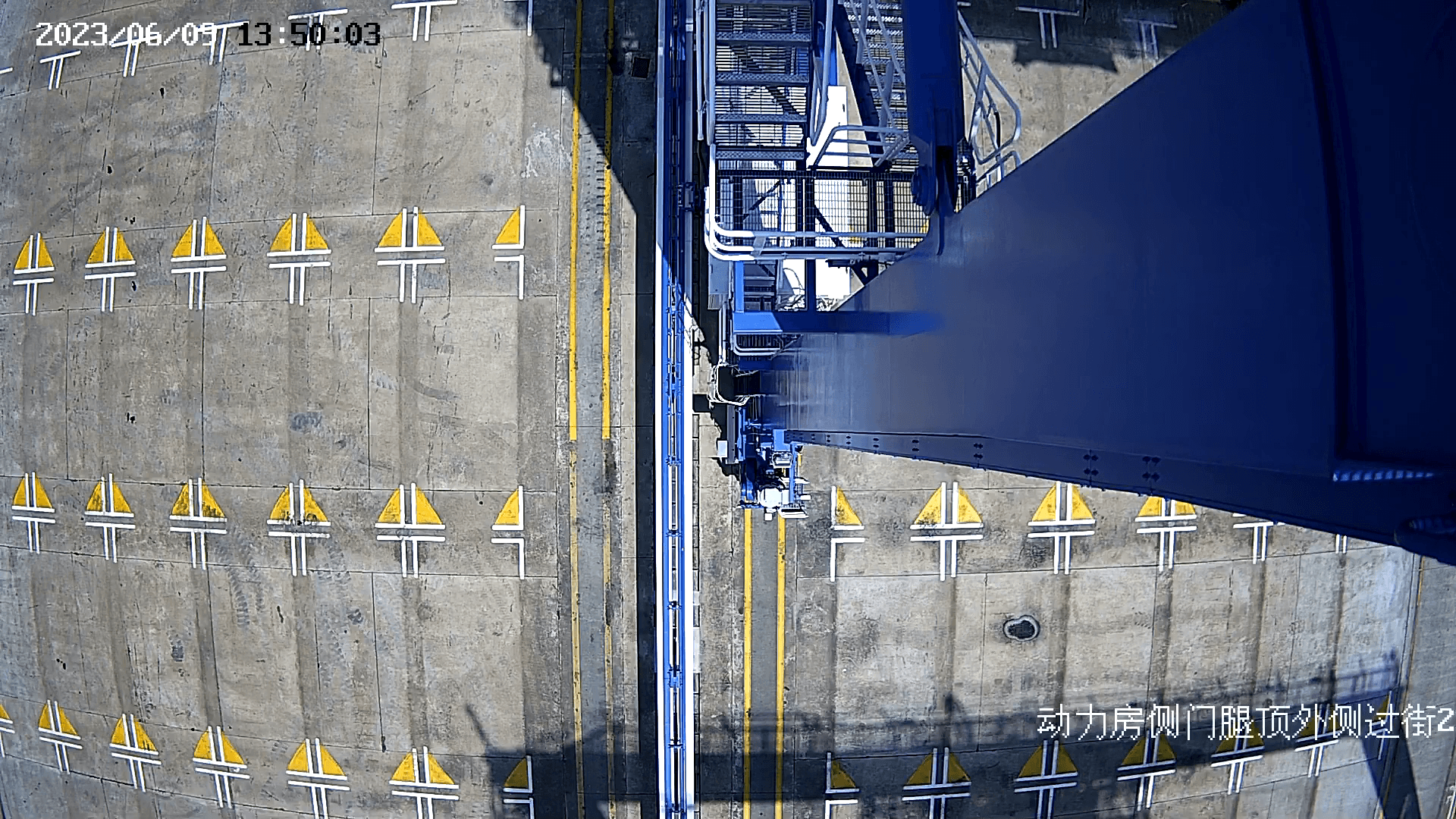

Port camera channel 5
CH5
元镜像 SuperMetaX

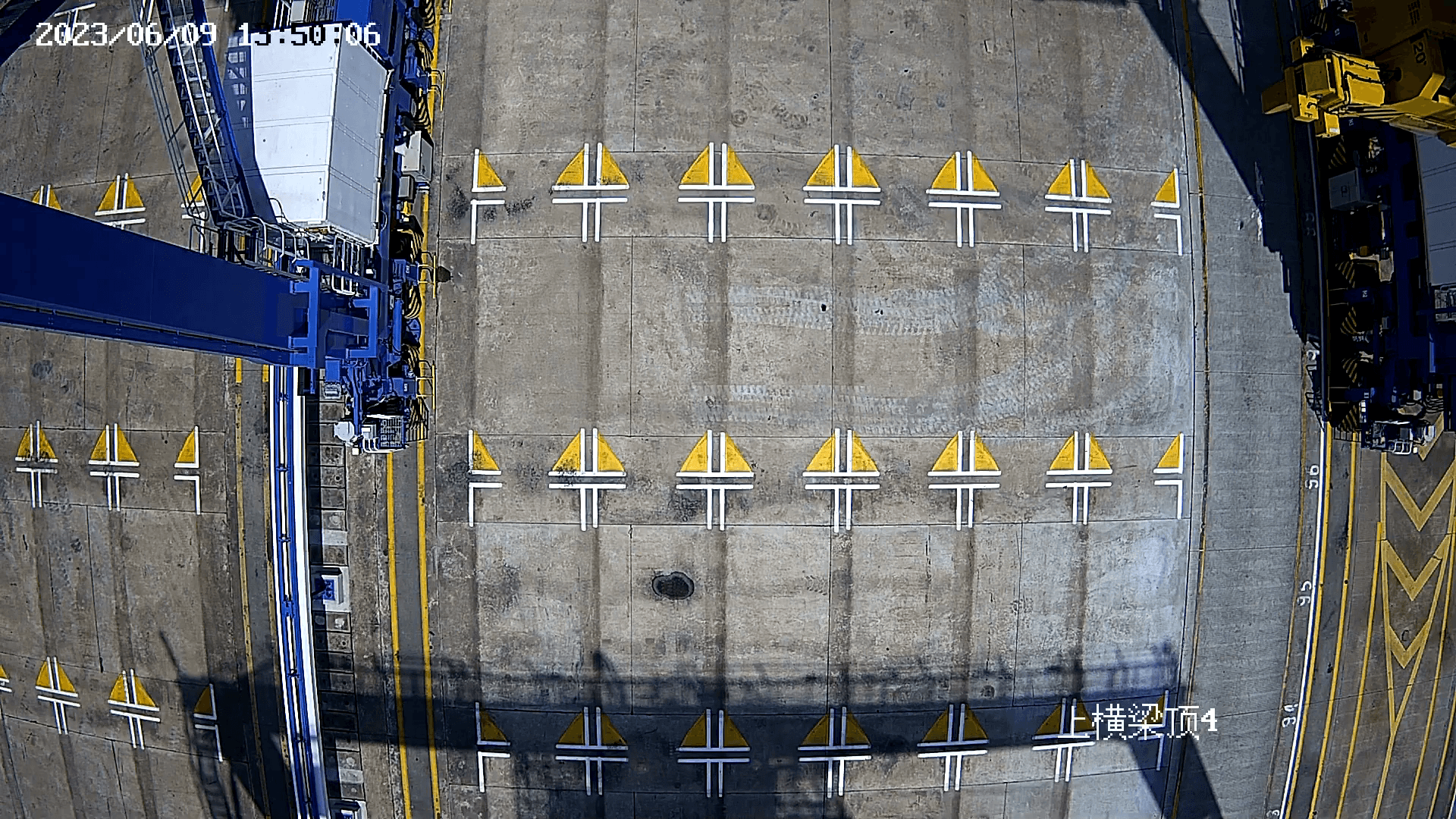

Port camera channel 6
CH6
元镜像 SuperMetaX

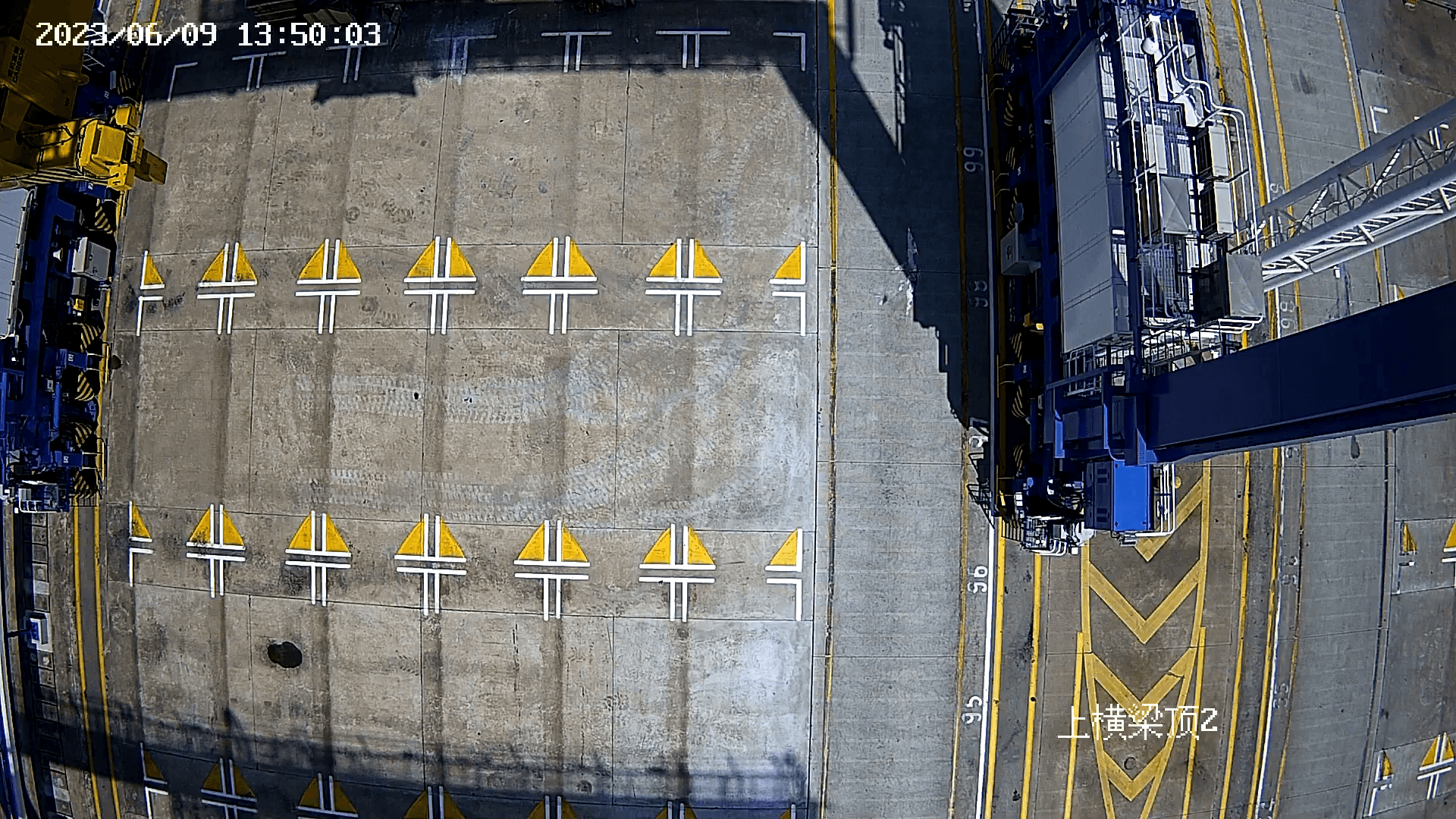

Port camera channel 7
CH7
元镜像 SuperMetaX

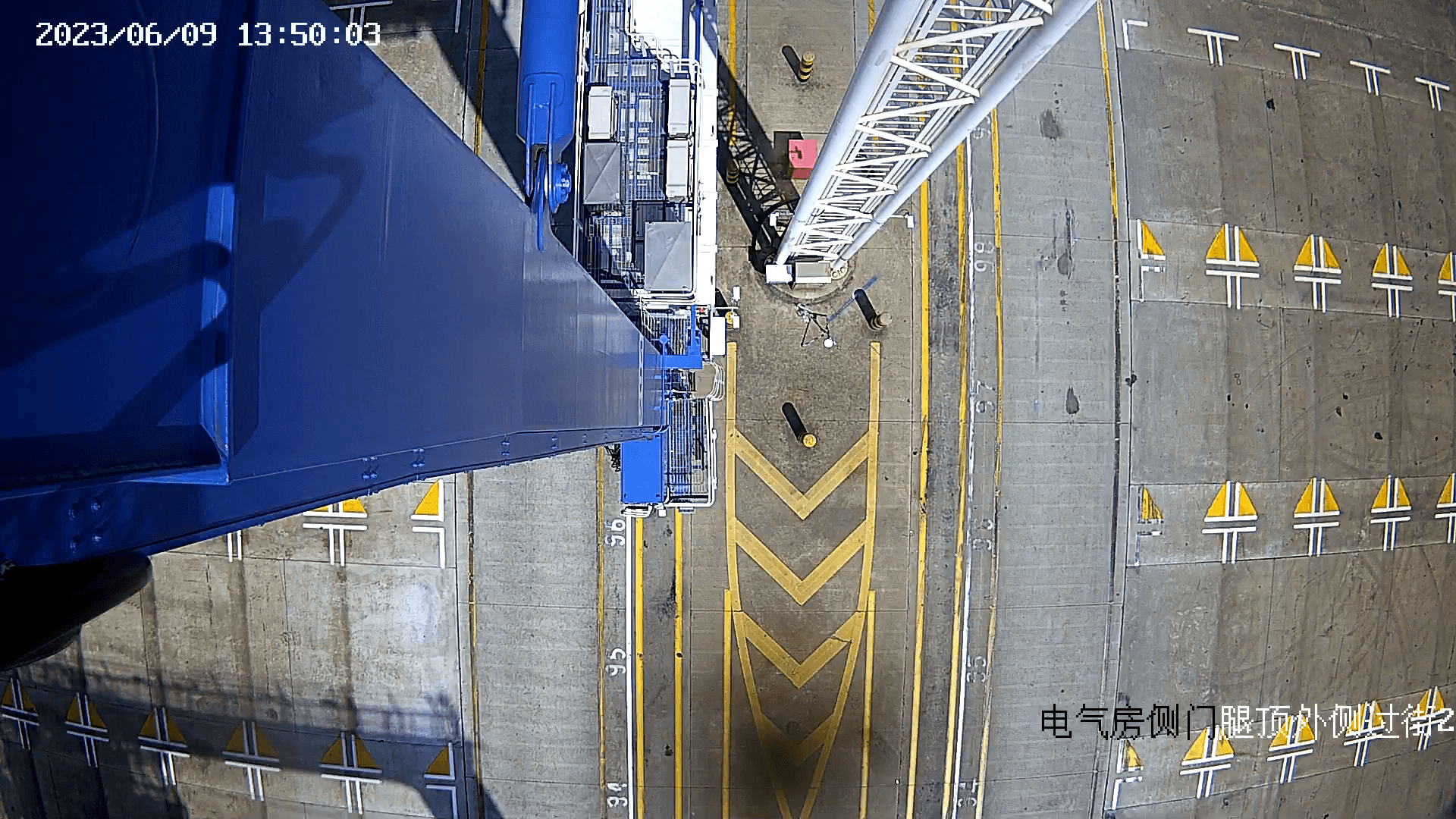

Port camera channel 8
CH8
元镜像 SuperMetaX
STITCH
After · Single panoramic view

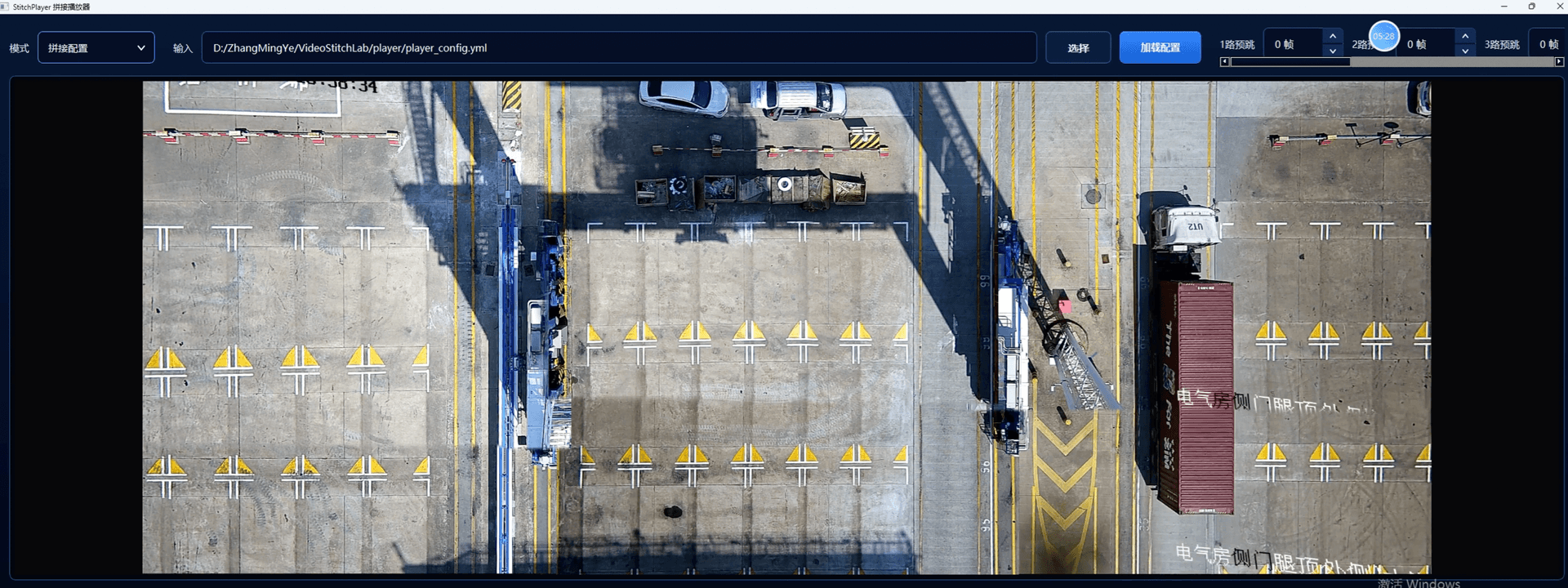

Port panoramic video stitching result — 8 cameras merged into one seamless view
元镜像 SuperMetaX元镜像 SuperMetaX元镜像 SuperMetaX元镜像 SuperMetaX元镜像 SuperMetaX元镜像 SuperMetaX元镜像 SuperMetaX元镜像 SuperMetaX元镜像 SuperMetaX元镜像 SuperMetaX元镜像 SuperMetaX元镜像 SuperMetaX
⚙️

Stitching Engine

Proprietary GPU-accelerated multi-camera stitching algorithm. Supports up to 156 channels on a single server, within 200 ms latency.

GPU加速CUDA / OpenCL毫秒级延迟
📡

Stream Output

Stitched panoramic video delivered as live streams in RTSP, RTMP, FLV, HLS, or WebSocket — ready to plug into any player, platform, or downstream system without additional conversion.

RTSP / RTMPFLV / HLS / WS免转码直接对接
🖥

Management Console

Multi-group, multi-scene stitching management. Configure camera groups, calibrate stitching layouts, and manage stream distribution across multiple independent scenes simultaneously.

多场景管理可视化校准多路码流分发

Stitching Hardware Lineup

Five hardware form factors — from domestic ARM boxes to AI-edge Jetson, industrial PCs, mini hosts, and high-performance x86 workstations — covering every deployment scenario and budget.

Domestic · Xinchuang

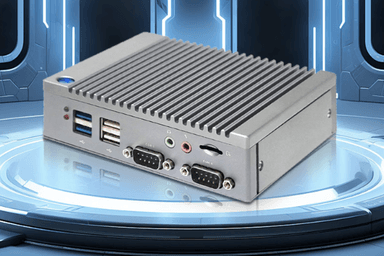

RK Rockchip Box

Rockchip RK系列 · ARM64

RK Rockchip stitching box
8
Channels
~15 W
TDP
RK系列
SoC
6 TOPS
NPU
Best for: Xinchuang projects; small-to-mid-scale.
AI Edge Computing

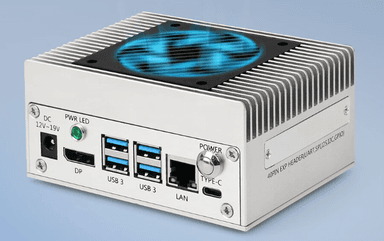

Jetson Stitching Box

NVIDIA Jetson Orin · GPU+ARM

Jetson AI stitching box
8
Channels
15 – 60 W
TDP
Jetson Orin
Platform
275 TOPS
AI
Best for: Edge AI — ports, mines, ships.
Compact · Low Power

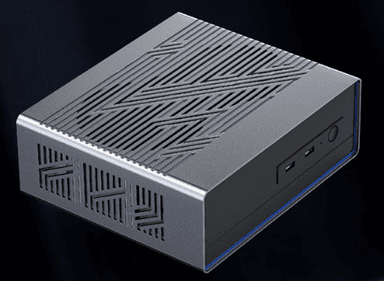

Mini PC

Mini PC · 超紧凑形态

Mini PC stitching host
10
Channels
15 – 35 W
TDP
x86_64
Arch
Ultra-compact
Size
Best for: Offices, retail, meeting rooms — space-limited.
Industrial Grade

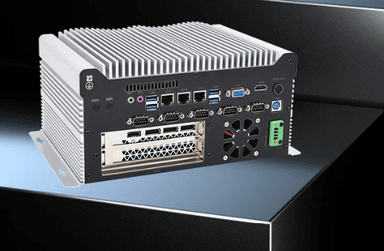

Industrial PC

Industrial PC · x86 嵌入式

Industrial PC stitching appliance
16
Channels
30 – 80 W
TDP
x86_64
Arch
Industrial
Grade
Best for: Factories, mines, tunnels — harsh environments.
Flagship
High Performance

X86 Workstation

Intel / AMD × NVIDIA GPU

X86 stitching workstation
156
Channels
8K UHD
Output
x86_64
Arch
Discrete
GPU
Best for: Port command centers, large factories, rail control rooms.
Form FactorChannelsPowerBest For
RK Rockchip Box8~15 WXinchuang projects; small-to-mid-scale.
Jetson Stitching Box815 – 60 WEdge AI — ports, mines, ships.
Mini PC1015 – 35 WOffices, retail, meeting rooms — space-limited.
Industrial PC1630 – 80 WFactories, mines, tunnels — harsh environments.
X86 Workstation156—Port command centers, large factories, rail control rooms.

Cooperation & Integration

Software-Only
License delivered; runs on customer-provided servers or boxes.
Hardware + Software Bundle
Pre-integrated stitching appliance — plug in cameras and go.
Custom Development
Tailored stitching pipeline and UI for unique project requirements.

Wide Compatibility · All Camera Types

Supports all mainstream camera types on the market

Bullet
Bullet
Fixed monitoring
PTZ
PTZ
Pan-tilt rotation
Dome
Dome
Wall/Ceiling mount
180° Panoramic
180° Panoramic
Wide-angle coverage
270° Eagle Eye
270° Eagle Eye
Large-area overhead view
360° Fisheye
360° Fisheye
Full panoramic, no blind spots
Security Grade
Compatible with Hikvision, Dahua, Uniview and other mainstream security cameras
Mining Grade
Supports explosion-proof mining cameras, compatible with coal mine safety monitoring standards
Marine Grade
Adapted for marine industrial cameras, certified by classification societies
Supported Protocols
RTSPRTMPGB28181ONVIFFLVHLSWebRTCNDISDIHDMIUSB
Ready to Upgrade Your Surveillance System?

We offer free solution assessments to help you find the best video stitching solution.

Book a DemoContact Us+86 400-151-3342

Frequently Asked Questions

How many cameras can the video stitching system support?

The SuperMetaX PanoStitch Live panoramic video stitching system stitches up to 156 cameras simultaneously on a single server, with real-time stitching and 8K ultra-HD output.

What industries is the video stitching system suitable for?

It is widely used in ports, warehouses, rail transit, coal mines, smart factories, waterways and other scenarios requiring wide-area surveillance.

What is the stitching latency?

Real-time stitching latency is within 200 ms and does not vary with the number of channels, meeting the demands of live monitoring and operational command.

What is the difference between video stitching and a regular multi-screen display?

Video stitching seamlessly merges multiple camera feeds into a single continuous panoramic image, eliminating the gaps and blind spots of multi-screen layouts.

What hardware platforms does PanoStitch Live support?

PanoStitch Live runs on RK Rockchip ARM boxes, NVIDIA Jetson edge devices, industrial PCs, mini PCs, and high-performance x86 workstations — covering 8 to 156 channels depending on the platform.

Which camera brands and protocols are supported?

Compatible with Hikvision, Dahua, Uniview, Axis, Bosch, Sony, Hanwha and more. Supports GB28181, ONVIF, RTSP, RTMP, NDI and other major protocols, with output in RTSP, RTMP, FLV, HLS, and WebSocket formats.

View all 30 FAQs →

Related Products

CORE PRODUCT

Video Twin System

Fuse live video with 3D models

CORE PRODUCT

360° Ship Surround View

Eliminate vessel blind spots

Read: Video Stitching Guide →
