Coal Mine Longwall Panoramic Video System
Back to Industry SolutionsLONGWALL PANORAMIC SURVEILLANCE

Coal Mine Longwall Panoramic Video Solution

Real-Time Panorama · Historical Review · Key Area PIP · Tour Inspection · IoT Integration

Designed for coal mine longwall faces, roadways, transport transfer points, and key underground areas. The system stitches multi-channel video into a continuous panoramic view and integrates shearer, hydraulic support, gas, dust, personnel positioning, and other operational data, helping dispatchers see the full underground operational picture in one real-scene view.

Longwall
Core Scenario
PIP
Key Area Picture-in-Picture
IoT
Safety Monitoring Data
Review
Historical Panorama Review

Industry Pain Points

01
Fragmented Views

Longwall faces are long with dense equipment. Traditional N-grid layouts only show partial cross-sections, lacking continuous spatial relationships between shearers, hydraulic supports, and conveyors.

02
Dust & Fog Interference

Coal cutting, support shifting, and transport generate dust and water mist, causing local cameras to temporarily distort. Operators must constantly switch feeds to confirm conditions.

03
Difficult Traceback

After incidents, timelines must be pieced together from multiple recordings, making it hard to reconstruct personnel, equipment, and coal flow changes in a single continuous view.

04
Scattered Data

Shearer position, support pressure, gas, dust, temperature, humidity, and belt status data are separated from video, lengthening on-site decision-making chains.

Solution Overview

Longwall Panorama

From N-Grid Patrol to One Continuous Underground Panorama

The longwall face is narrow, equipment-dense, and dust conditions change rapidly. Single camera feeds cannot convey true spatial relationships. The panoramic stitching solution fuses multiple local videos by field spatial order, presenting shearer operation, support status, coal wall changes, personnel activity, and transport links in one continuous view, with safety monitoring and equipment data overlay.

✓

Real-Time Longwall Panorama

Stitch multi-camera mining feeds along the working face into one continuous panorama, fully presenting shearer, armored face conveyor, hydraulic support, and coal wall status.

✓

Historical Panoramic Review

Replay panoramic footage by time, equipment, area, or alert event, reviewing coal cutting, support shifting, transport, and personnel operations in a continuous view.

✓

Key Area Picture-in-Picture

Pop up video from shearer, headgate, transfer point, and belt junction areas on the main panoramic view, preserving overall awareness while verifying details.

✓

IoT Data Integration

Integrate gas, dust, temperature, humidity, support pressure, shearer position, and belt status data, binding them to real image positions.

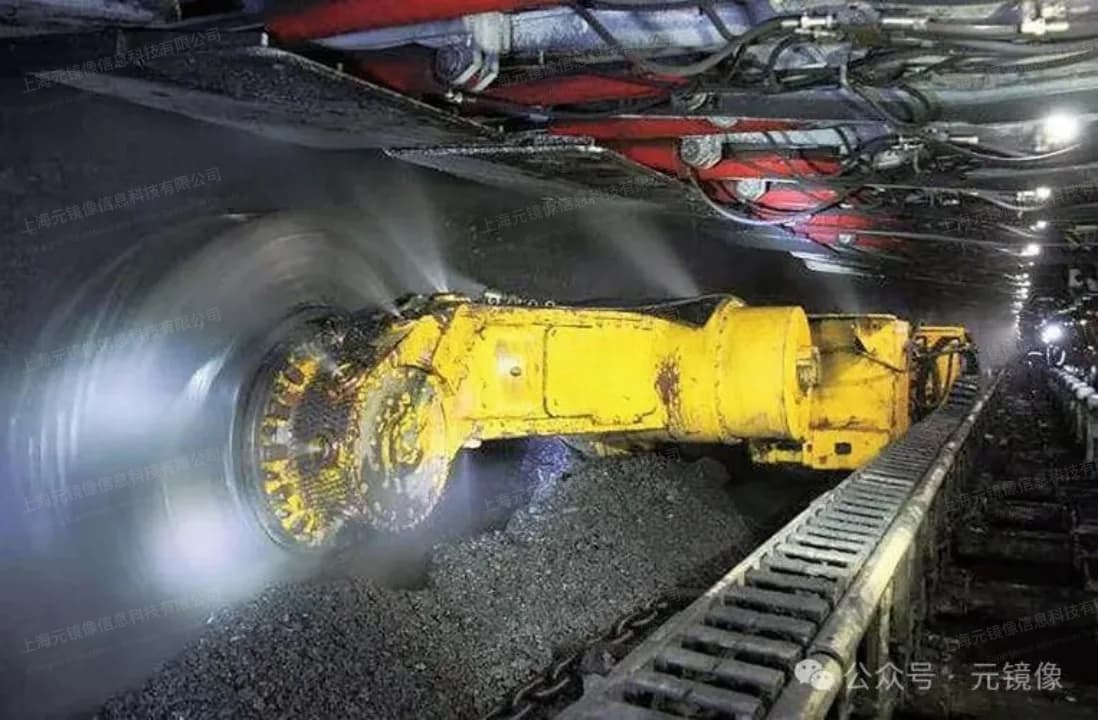

Shearer On-Site Operation View
Longwall face equipment · shearer, coal wall, transport channel, and support space

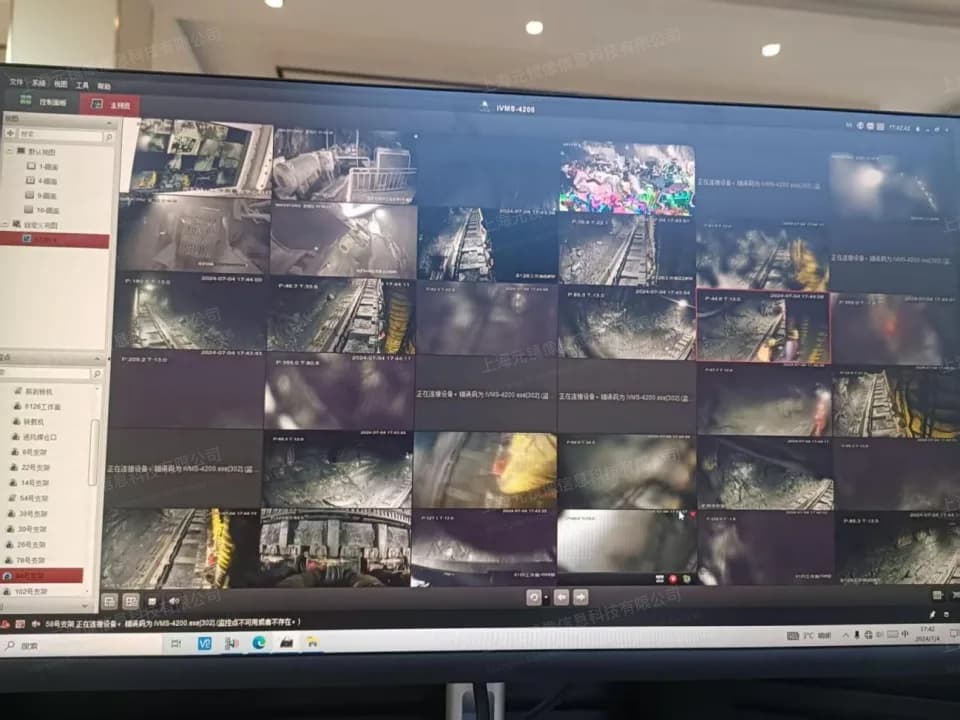

Traditional N-Grid Monitoring System
Traditional N-Grid System · Multi-window dispersed patrol

System Architecture

01

Mining Video Access

Integrate mining-grade explosion-proof cameras, low-light cameras, thermal imaging, or existing underground surveillance points, covering longwall faces, headgates, and transfer areas.

02

Edge Real-Time Stitching

Complete calibration, distortion correction, dehazing enhancement, and low-latency stitching at underground or surface edge nodes, outputting one or more panoramic video streams.

03

Business Data Fusion

Integrate shearer, hydraulic support, belt, gas, dust, personnel positioning, and safety monitoring systems to form a unified video and data view.

04

Inspection & Review

Support real-time panorama, historical panorama review, picture-in-picture linkage, panoramic tour inspection, alert positioning, large-screen display, and platform secondary integration.

Core Features

Function 01

Video Dehazing Enhancement

Underground longwall dust, water mist, and low-light conditions significantly reduce video visibility. The system applies dehazing enhancement, contrast improvement, and detail restoration to improve visual clarity of shearers, coal walls, supports, and transport channels, providing a clearer video foundation for real-time monitoring, PIP verification, and historical review.

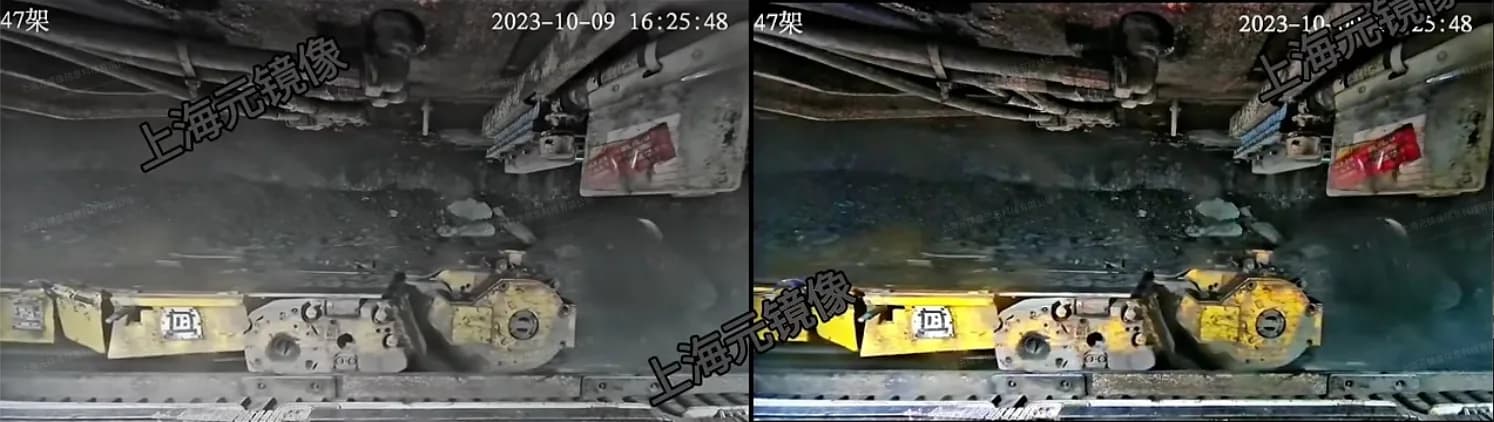

Underground mine video dehazing before/after comparison
Before/after dehazing · improved clarity in dusty environments

Function 02

Video Stitching

Fuse multiple longwall local feeds into one continuous panorama in real time based on field spatial relationships, reducing cross-window observation and manual inference. After stitching, clearly presents shearer movement, coal flow transport, support space, and key area status, suitable for dispatch screens, platform integration, and historical panorama playback.

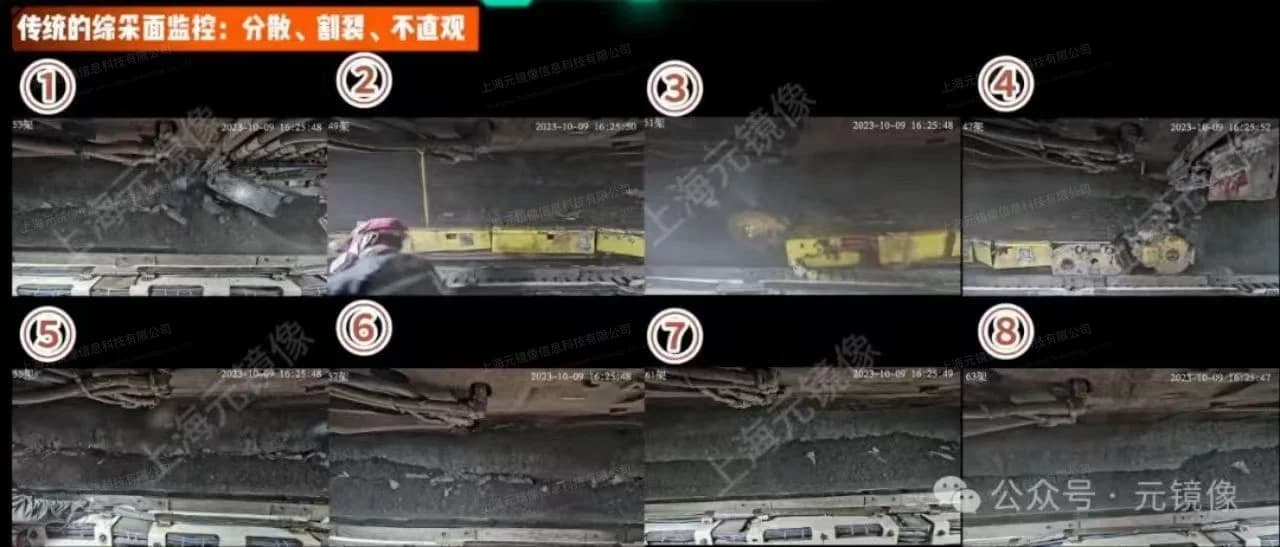

Longwall face before stitching partial view
Before · Fragmented local views

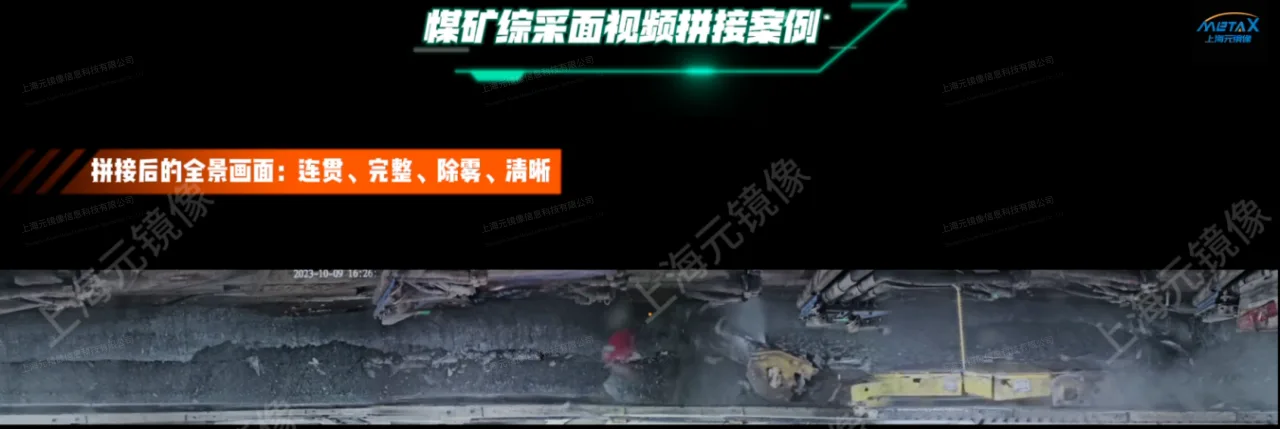

Longwall face after stitching continuous panorama
After · One continuous panoramic view

Extended Applications

Beyond Longwall

Video Stitching Technology Applicable to More Coal Mine Scenarios

The core technology is not limited to longwall faces — it fusiona fragmented views from long-distance, multi-camera, heavily obstructed, low-light scenes into a continuous real-scene view. It can also be applied to development faces, transport roadways, return airways, belt lines, chambers, and guard areas, serving as a unified video foundation for smart mine visualization platforms.

✓Longwall face long-distance continuous monitoring
✓Development face and heading end supervision
✓Transport roadway / return airway tour inspection
✓Belt conveyor line and transfer point surveillance
✓Substation, pump room, and other fixed locations
✓Underground key area alert-linked playback

Feature List

FeatureSupported
Real-time stitching of multi-camera mining feeds into one longwall panoramic video✓
Upgrade traditional N-grid monitoring to continuous panoramic view✓
Historical panorama review by time, area, equipment, and alert event✓
Picture-in-picture for shearer, headgate, transfer point, and belt junction key areas✓
Panoramic tour inspection across long-distance working faces✓
Integrate gas, dust, temperature, humidity, support pressure, shearer position, belt status IoT data✓
Alert point highlighting, pop-up, and linked playback on panoramic view✓
Dehazing, low-light enhancement, occlusion area alert, and key target annotation✓
Extendable to longwall, development face, transport roadway, return airway, substation, and pump room scenarios✓
Interface with existing NVR, VMS, mine dispatch platform, safety monitoring platform, and large-screen systems✓
Support B/S, C/S players, RTSP/FLV/WS panoramic video stream output✓

Value Proposition

✓

Upgrade scattered N-grid views into one continuous longwall panorama, reducing operator monitoring burden

✓

Correlate shearer, hydraulic support, coal flow, personnel, and sensor data in the same view

✓

Retain key equipment local details via picture-in-picture, balancing overall awareness and field verification

✓

Reconstruct incident processes with historical panoramic footage, improving accident review, training, and responsibility determination efficiency

✓

Reuse existing mining cameras and safety monitoring systems, expandable by longwall face, roadway, and chamber

✓

Provide a more intuitive underground real-scene visualization foundation for smart mine dispatch centers

Get the Coal Mine Longwall Panoramic Video Solution

Supports site assessment, mining camera integration, real-time stitching, IoT docking, PIP, and dispatch platform integration.

Contact an Expert+86 400-151-3342
