Warehouse panoramic video stitching system — seamless full-coverage monitoring
Back to Industry SolutionsWarehouse Solutions · WAREHOUSE PANORAMIC VIDEO

Warehouse Panoramic Video Solution

AR Real Warehouse + IoT Sensor Integration · Unifying Global View and Local Details on One Screen

Designed for emergency relief warehouses, railway wheel storage, logistics warehouses, and emergency supply depots, the system stitches multiple surveillance feeds into a continuous panoramic video. It integrates water intrusion, temperature, and humidity IoT sensors, overlays stack positions, inventory, alerts and picture-in-picture views on real footage, enabling visible, searchable, and coordinated warehouse management.

AR
Real-World Warehouse Tags
IoT
Sensor Integration
PIP
Picture-in-Picture Coordination
AI
Inventory Recognition & Count

Industry Pain Points · Industry Pain Points

01
Fragmented Multi-Window Layout

Warehouse footage is scattered across multiple windows, requiring operators to switch screens constantly and losing continuity between shelves, aisles, and storage positions.

02
Difficult Location Pinpointing

Alerts or inspection tasks can only be localized to camera or area level, making it impossible to directly identify specific stack positions, inventory batches, or exact locations.

03
Sensor Data Silos

Water intrusion, temperature, humidity, and smoke data are often viewed on separate platforms, disconnected from live video and creating long incident response chains.

04
Low Inventory Check Efficiency

Targets like railway wheels and emergency supplies may be split across multiple screens, obscured, or duplicated, causing missed items and double-counting in manual and AI recognition.

Solution Overview

AR Warehouse

Upgrade warehouse monitoring from multi-window layout to AR panoramic video

The solution uses panoramic video as the main display and fuses warehouse cameras, storage location data, IoT sensors, and AI recognition results into one interface. When water intrusion, temperature/humidity anomalies or inventory checks occur, the system highlights the location on the panoramic view and triggers local picture-in-picture display.

✓

AR Real-World Warehouse

Stitches multiple warehouse surveillance feeds into continuous panoramic video, overlaying storage areas, aisles, stacks, inventory, and alert status on real footage.

✓

IoT Sensor Integration

Integrates water intrusion, temperature, humidity, smoke, and magnetic door switch sensors, synchronizing environmental data with specific locations on the panoramic view.

✓

Panoramic & Picture-in-Picture Coordination

The main view maintains overall warehouse status, and clicking a stack, alert point, or inventory target triggers a local picture-in-picture camera feed for detail verification.

✓

AI Inventory Recognition

Provides complete visual input for targets like wheels, emergency supplies, and equipment, reducing missed items and duplicate counts in multi-window recognition.

Emergency Relief Warehouse AR Panoramic Video
Panoramic video main display · overlaying stacks, inventory, sensors, and alert tags

Sensor Integration

Sensor Integration

Make alerts point to real warehouse locations, not device lists

The system can integrate sensor data through IoT platforms, edge gateways, or standard interfaces, binding each sensor to actual locations on the panoramic view. When alerts trigger, the main view highlights the affected area and picture-in-picture shows local camera details so operators can quickly verify and dispatch.

Water Intrusion Alert
Temperature Monitoring
Humidity Monitoring
Smoke / Fire Detection
Door Magnetic Switch
Device Online Status
Stack Position Inventory Status
Anomaly Alert Coordination
01

Video Capture & Stitching

Integrates multiple warehouse rifle cameras, dome cameras, hemispherical, or panoramic cameras, completing calibration, distortion correction, and real-time stitching output.

02

Warehouse Space Annotation

Configures AR tags for storage areas, aisles, shelves, stack positions, fire points, and key inventory items on the panoramic view.

03

IoT Data Integration

Integrates water intrusion, temperature, humidity, smoke, and other sensor data through platform interfaces or edge gateways, binding them to real spatial locations.

04

Coordinated Application Display

Outputs panoramic main views, local picture-in-picture, alert pop-ups, inventory search, AI recognition statistics, and event replay.

Core Features

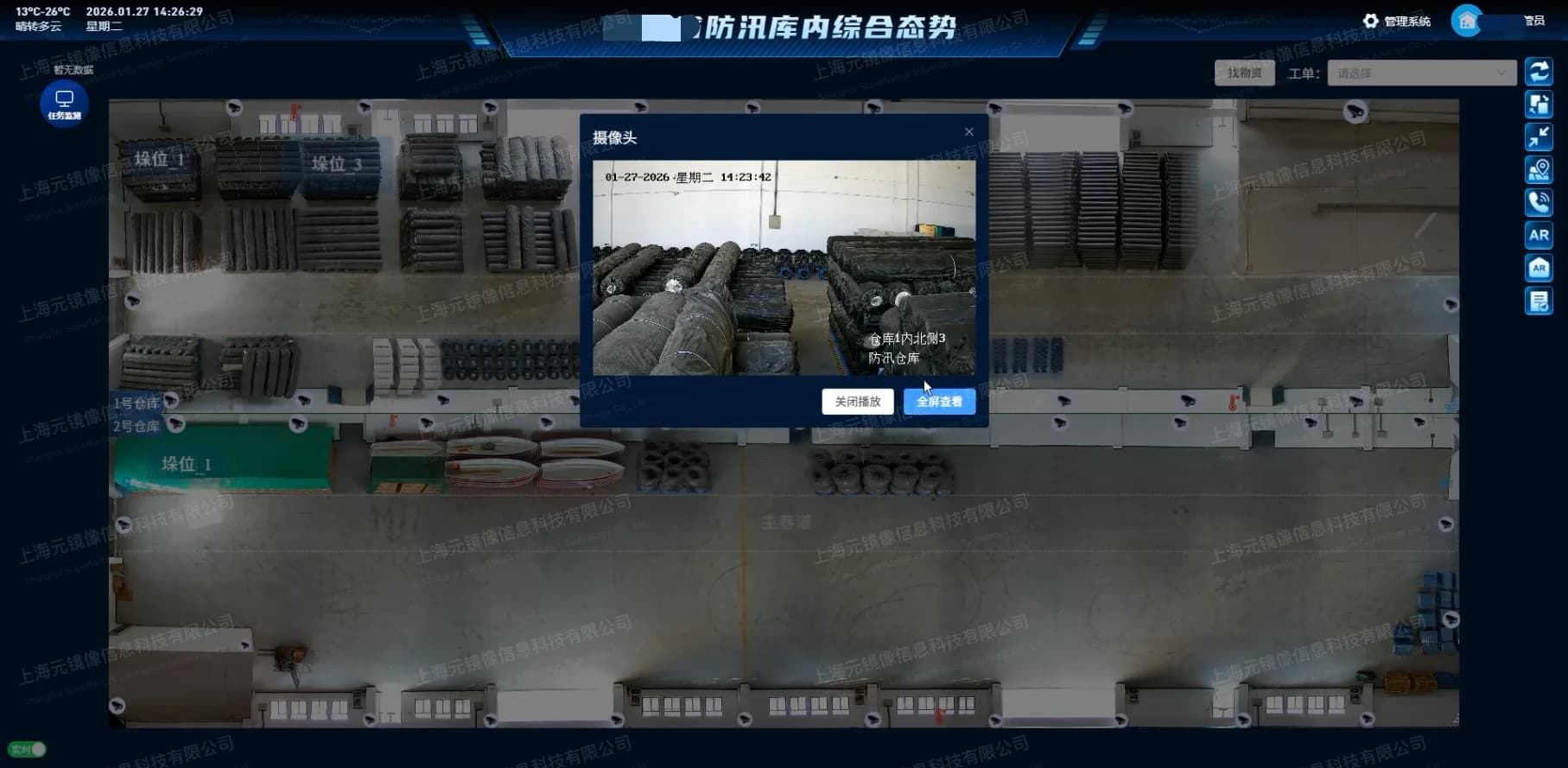

Warehouse panoramic picture-in-picture coordination

Function 01

Panoramic Picture-in-Picture

The panoramic main view preserves overall warehouse status. Click stack positions, alert points, or inventory targets to trigger local picture-in-picture display for fast detail verification.

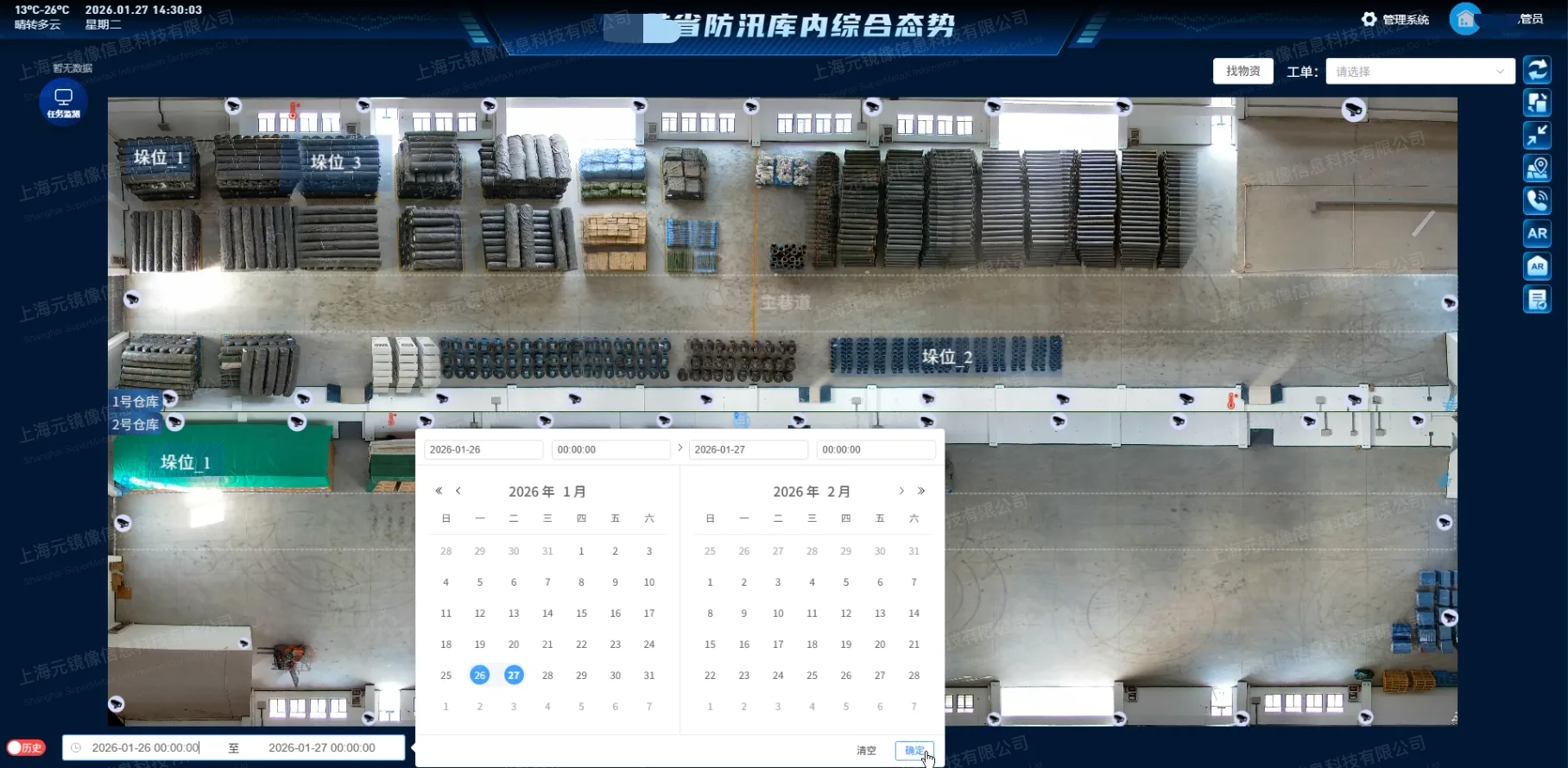

Warehouse panoramic historical playback

Function 02

Panoramic Historical Playback

Search panoramic recordings by time, area, alert location, or inventory target. Reconstruct past events in a continuous space view to quickly locate anomalies.

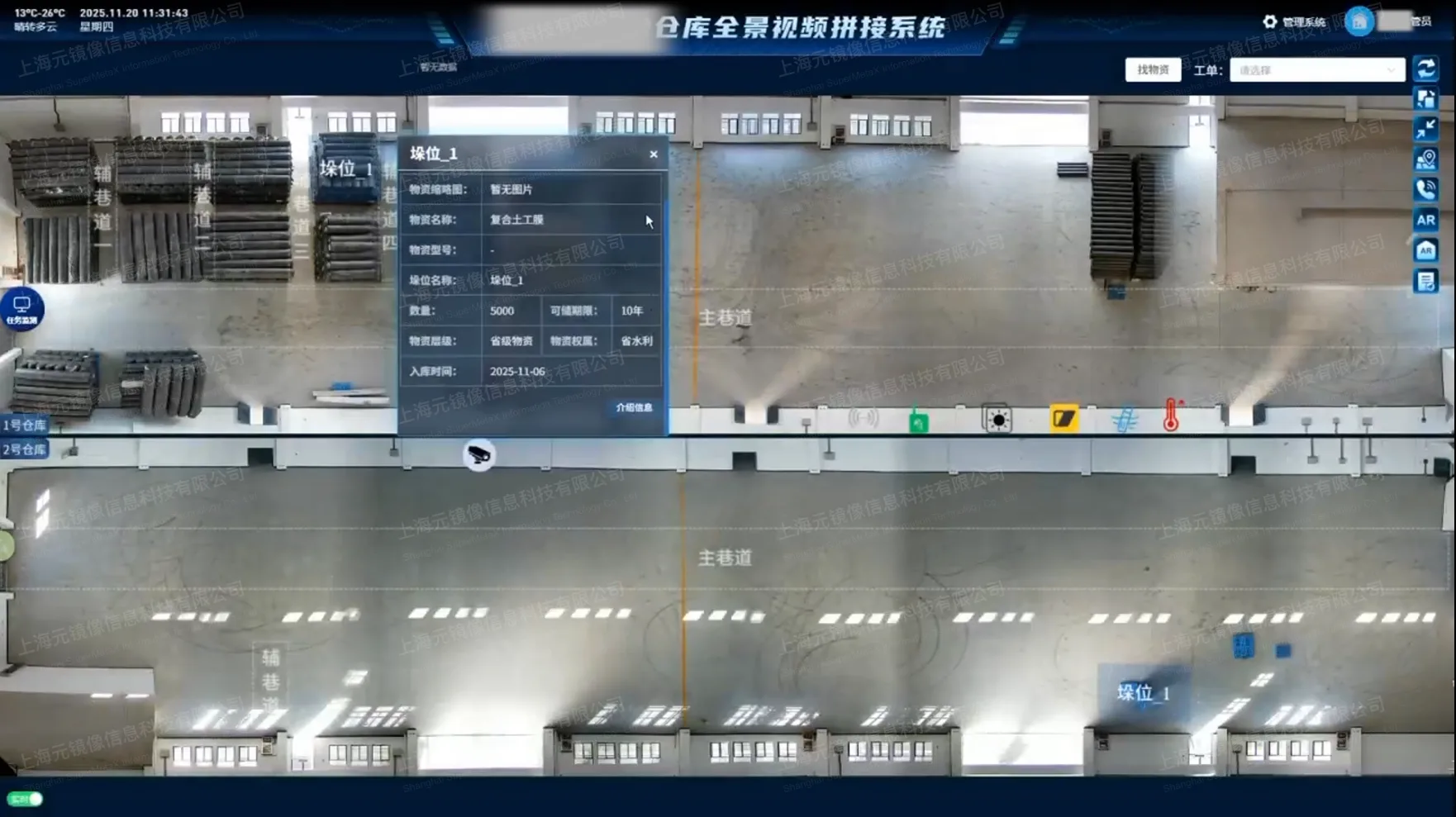

Warehouse AR stack position tags

Function 03

Stack Position AR Tags with WMS Integration

Mark storage areas, aisles, shelves, stack positions, and key inventory items on panoramic video, integrating directly with warehouse systems. When searching for inventory, corresponding positions highlight on the real-world view.

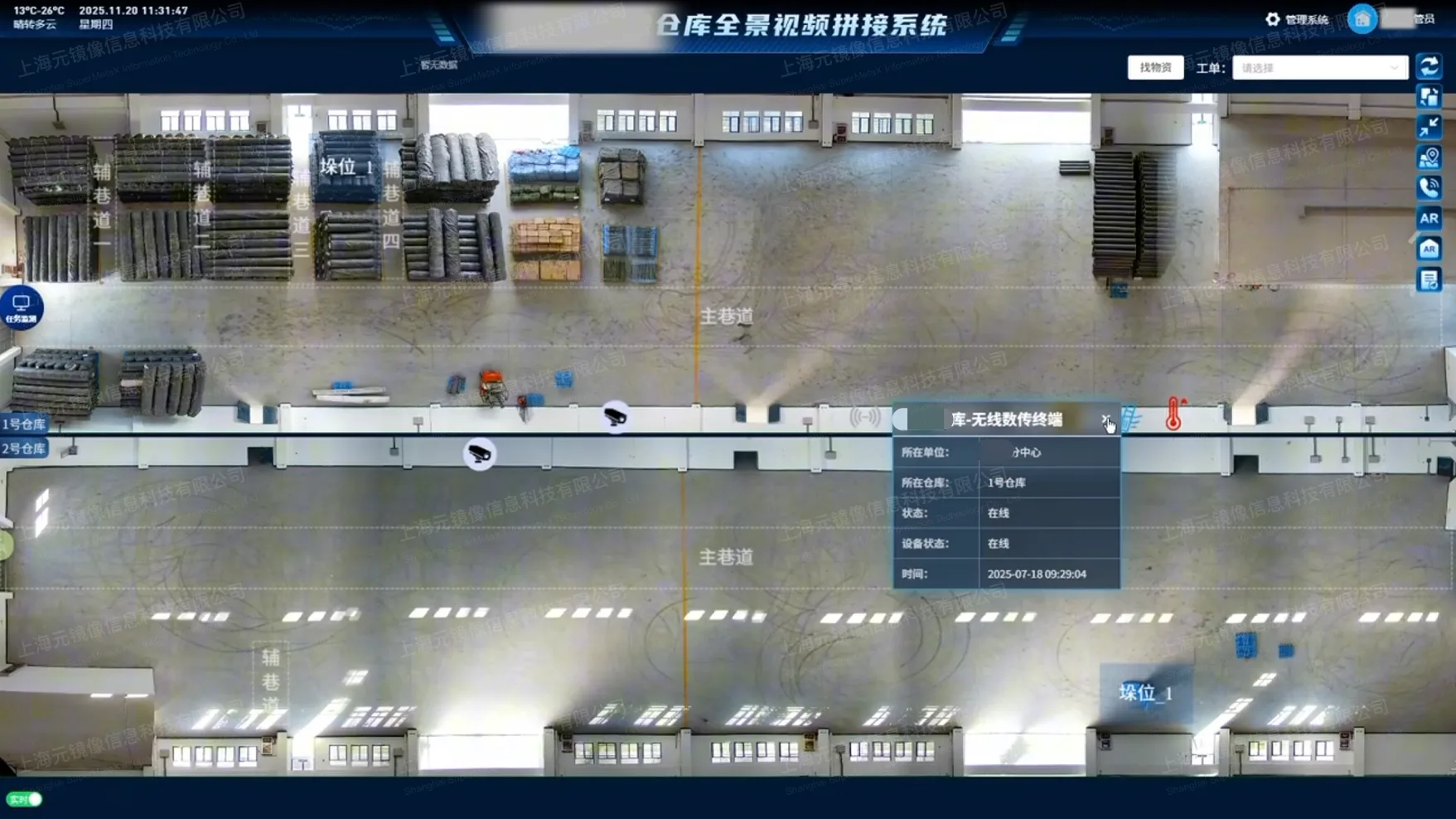

Warehouse IoT device integration

Function 04

IoT Device Integration with Clear Alerts

Integrate water intrusion, temperature, humidity, smoke, and magnetic door switches, binding sensor status to real warehouse locations with on-screen highlight during alerts.

Use Cases

01

Emergency Relief Warehouse

Annotate sandbags, pumps, life jackets, generators, and other emergency supplies for location, environment monitoring, and alert coordination.

02

Railway Wheel Bearing Storage

Stitch wheel bearing storage areas into a continuous panoramic view, providing complete visibility for AI counting and manual verification.

03

General Logistics Warehouse

Cover receiving/shipping zones, shelf areas, loading docks, and aisles, reducing multi-window scanning and cross-camera tracking costs.

04

Hazmat / Precision Storage

Overlay temperature, humidity, water intrusion, and smoke sensor status on real-world footage, improving anomaly detection and traceability.

Case Studies

01

Case Study One: Emergency Relief Warehouse AR Panoramic Video System

Before stitching, the emergency relief warehouse displayed independent monitoring windows requiring operators to view each screen for inventory, aisle, and environmental status. After stitching into a continuous panoramic view, AR tags overlay stack positions, inventory names, water intrusion, temperature, and humidity, while local details can be reviewed through picture-in-picture.

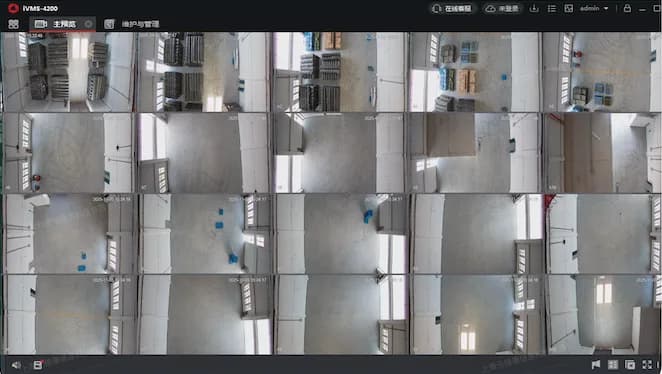

Before Stitching · Emergency Relief Warehouse Multi-Window View
Before Stitching · Emergency Relief Warehouse Multi-Window View

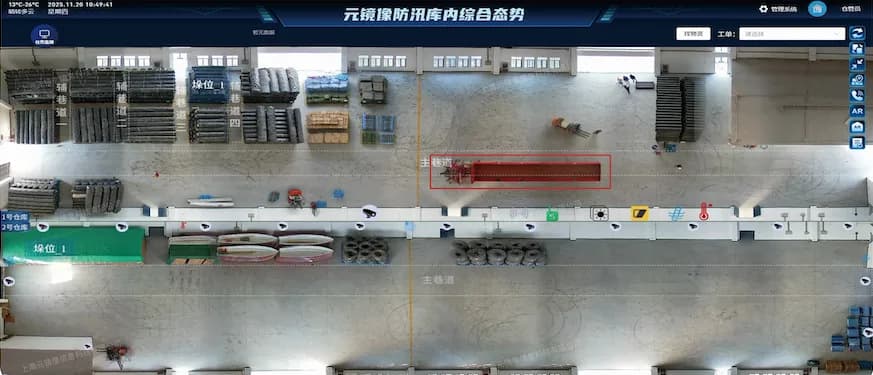

After Stitching · Emergency Relief Warehouse AR Panoramic View
After Stitching · Emergency Relief Warehouse AR Panoramic View

Feature List

FeatureSupported
Real-time stitching of multiple warehouse video feeds into one panoramic video✓
AR tags marking storage areas, aisles, stack positions, shelves, and inventory✓
Warehouse system integration highlights stack positions when searching for inventory✓
IoT sensor integration for water intrusion, temperature, humidity, smoke, and door magnetic switches✓
Synchronized panoramic main view and picture-in-picture coordination✓
Panoramic historical playback by time, area, alert point, and inventory target✓
Click stack positions, alert points, or inventory targets to view local details✓
AI recognition and counting for railway wheels, emergency supplies, and other inventory targets✓
Alert locations highlighted on panoramic view with pop-ups and replay✓
Integration with existing NVR, VMS, warehouse management, and emergency response platforms✓
Support for large-screen display, B/S or C/S player, and video stream output✓

Solution Value

✓

Upgrade from traditional multi-window surveillance to an AR real-world panoramic warehouse view, reducing operator cognitive load

✓

Bind video, sensors, inventory locations, and inventory data to one spatial display

✓

Point water intrusion and temperature/humidity alerts to real locations, improving emergency response efficiency

✓

Picture-in-picture preserves local detail while maintaining global view, enabling quick verification of individual stacks and inventory status

✓

Provide more stable AI recognition input for railway wheels, emergency supplies, and other inventory targets, reducing missed items and double counting

✓

Reuse existing cameras and monitoring platforms for phased expansion by storage area

Get the Warehouse Panoramic Video Solution

Supporting warehouse location assessment, panoramic stitching debugging, sensor integration, AR tagging, AI recognition, and platform integration
