Traffic panoramic video system
Back to Industry SolutionsTraffic Solutions · TRAFFIC PANORAMIC SURVEILLANCE

Traffic Panoramic Video System Solution

Video Stitching + 3D Real-Scene Fusion · Cross-Camera Continuous Target Tracking

Designed for intersections, road segments, and traffic hubs. The system stitches multiple surveillance feeds into a continuous panoramic video and overlays real video textures on 3D intersection models for three-dimensional traffic situational awareness. Vehicles, pedestrians, and other targets maintain trajectory continuity when switching between cameras, thoroughly solving cross-camera tracking disconnection.

Stitch
Multi-Camera Stitching
3D
Video Twin
Track
Cross-Camera Tracking
AR
Event Alerts

Industry Pain Points

01
Fragmented Views

Intersection and road segment monitoring is scattered across multiple windows, making it impossible for operators to grasp the overall traffic situation of continuous road sections in a single view.

02
Difficult Cross-Camera Tracking

When vehicles and pedestrians switch between different cameras, target trajectories break, preventing continuous tracking of the same target across multiple feeds.

03
Lack of Spatial Awareness

Flat video cannot reflect the three-dimensional structure of intersections, lane hierarchies, or spatial relationships; incident positioning relies on manual experience.

04
Delayed Incident Response

Anomalies such as congestion, wrong-way driving, and accidents require manual screen-by-screen inspection, resulting in long detection and response times with complex response chains.

Solution Overview

Video Stitching + 3D Fusion

Video stitching + 3D fusion, building three-dimensional traffic panoramas

The solution builds traffic panoramic video capabilities in two steps: First, stitch multiple intersection cameras into a continuous panoramic video, eliminating fragmented views. Second, overlay the stitched video texture on 3D intersection models, creating an interactive real-scene 3D traffic environment. After both steps, cross-camera target tracking operates in continuous 3D space, and vehicle trajectories no longer break at camera boundaries.

✓

Multi-Camera Real-Time Stitching

Stitch multiple intersection and road segment cameras into a continuous panoramic video, eliminating fragmented views for a single-screen grasp of overall traffic conditions.

✓

3D Real-Scene Fusion

Overlay intersection 3D models on the stitched video, mapping real video textures into 3D space for three-dimensional traffic situational awareness.

✓

Cross-Camera Continuous Tracking

Maintain trajectory continuity when targets switch between cameras, enabling continuous tracking of vehicles and pedestrians across the panoramic view without disconnection.

✓

AR Event Annotation

Overlay lane, intersection, event alert, and target trajectory tags on the panoramic or 3D view, making anomaly locations immediately apparent.

Technical Path

Two-step technical approach to upgrade from multi-channel independent monitoring to a 3D real-scene panoramic video system.

01

Step 1: Multi-Camera Video Stitching

Stitch multiple intersection cameras into a continuous panoramic view, eliminating N-grid fragmentation

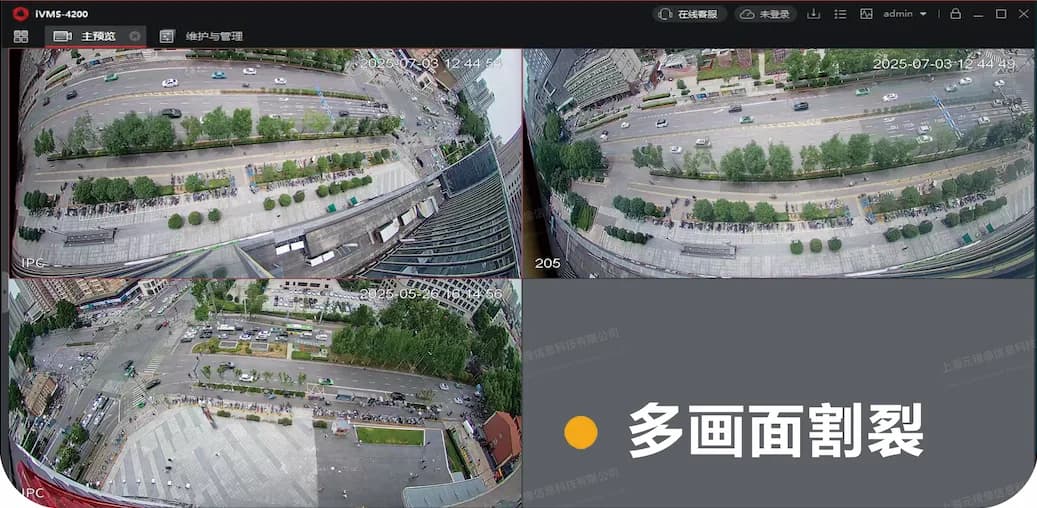

Before stitching · multiple independent intersection camera feeds
Before · Multiple Independent Intersection Camera Feeds
02

Step 2: 3D Intersection Modeling

Build detailed 3D intersection models including lanes, road surfaces, buildings, and traffic facilities

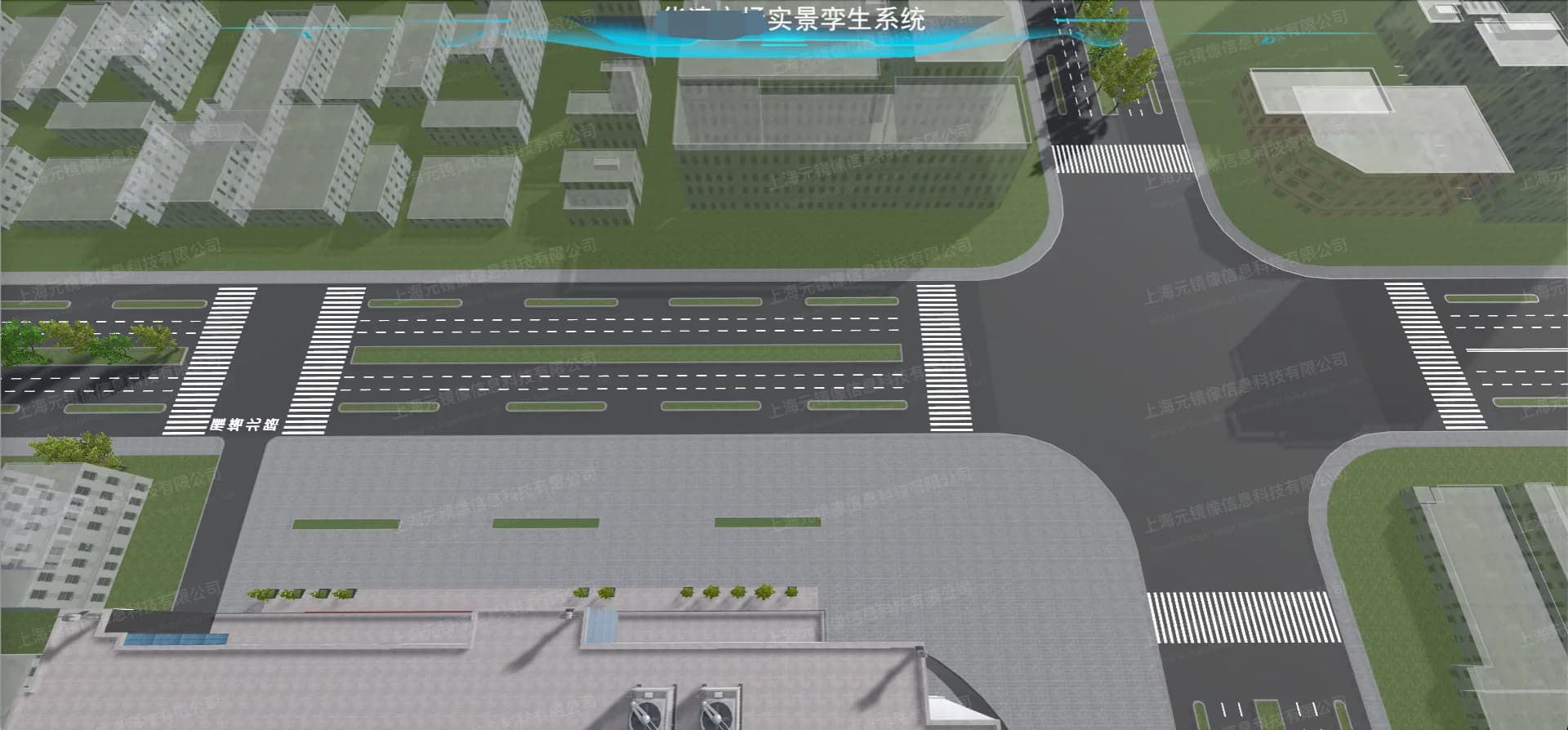

3D modeling · detailed intersection scene model
3D Modeling · Detailed Intersection Scene Model
Video Stitching+3D Modeling=3D Real-Scene Panorama
✓

Fusion Result: 3D Real-Scene Traffic Panorama

Real video textures mapped onto 3D models, cross-camera target tracking continuously presented in three-dimensional space

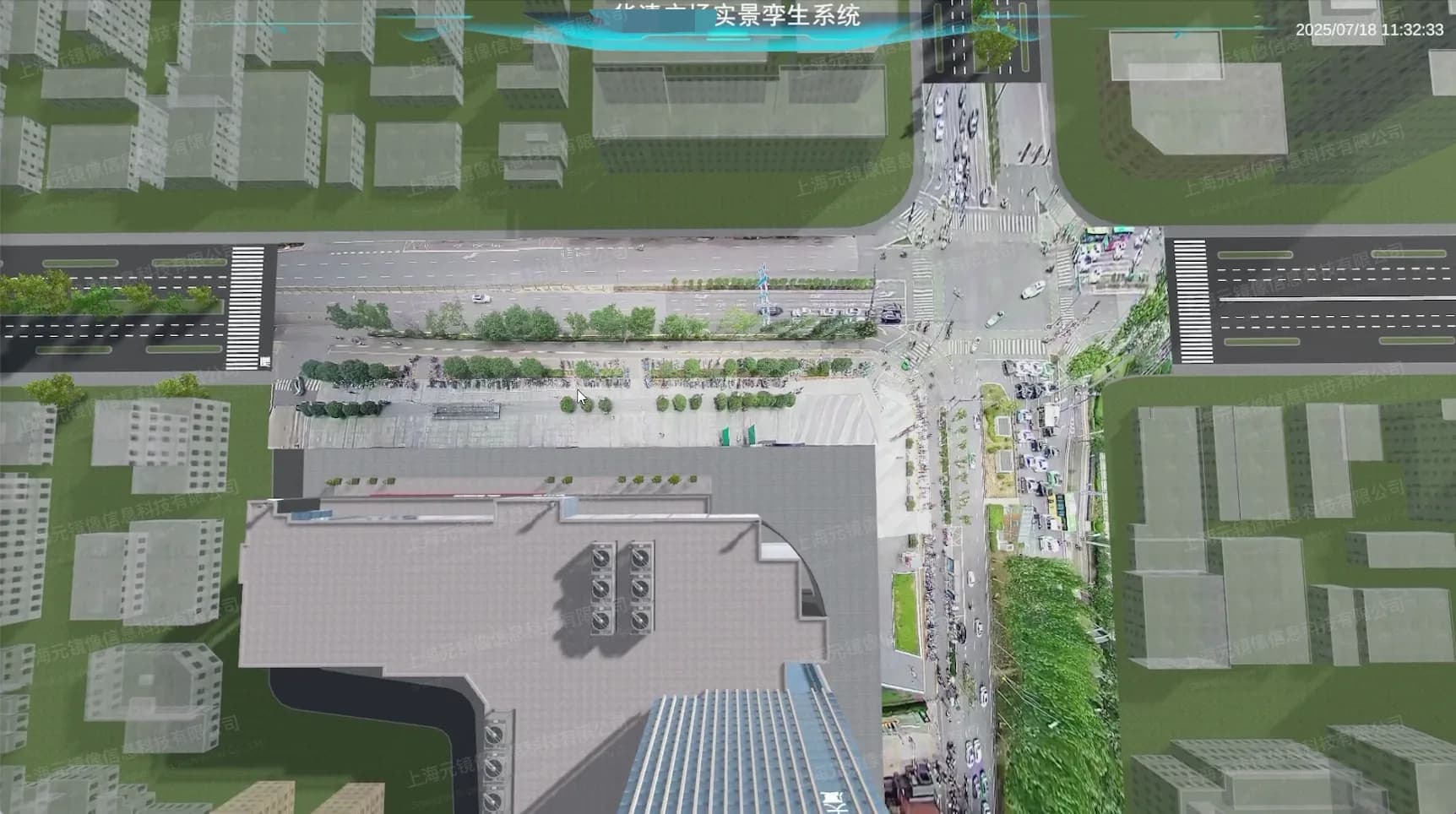

After fusion · 3D real-scene traffic panoramic system
After Fusion · 3D Real-Scene Traffic Panorama · Cross-Camera Target Tracking

Cross-Camera Continuous Tracking

Cross-Camera Continuous Tracking

Targets cross cameras, trajectories stay connected

In traditional multi-camera monitoring, when a vehicle moves from one camera's field of view to another, the target ID is lost and the trajectory breaks, requiring operators to manually re-locate the same vehicle across multiple windows. In the 3D real-scene fusion panorama, all camera views are unified into the same 3D spatial coordinate system, making target positions spatially continuous. Even across multiple camera boundaries, the system maintains target ID and trajectory continuity.

Vehicle Cross-Intersection Tracking

A vehicle enters from one side of the intersection, crosses through, and exits from the other side — the full trajectory is continuously displayed in the 3D scene without disconnection due to camera switching.

Pedestrian Cross-Zone Tracking

When pedestrians move between intersections, sidewalks, and green belts, the system continuously maintains target tracking, supporting trajectory review and behavior analysis.

Multi-Target Simultaneous Tracking

When multiple vehicles travel through an intersection simultaneously, the system assigns each target a unique ID and tracks them all concurrently in the panoramic 3D scene without interference.

Technical Architecture

01

Video Capture & Stitching

Integrate multiple rifle, dome, or panoramic cameras at intersections and road segments, completing calibration, distortion correction, and real-time stitching output.

02

3D Scene Modeling

Create 3D models of intersections and road segments, building detailed 3D scenes including lanes, road surfaces, buildings, and facilities.

03

Video & 3D Fusion

Map the stitched panoramic video textures onto 3D models in real time, forming an interactive real-scene 3D traffic environment.

04

Cross-Camera Tracking & Applications

Achieve continuous cross-camera target tracking within the fused scene, outputting trajectories, alerts, event playback, and situational displays.

Core Features

Function 01

Cross-Camera Continuous Tracking

When vehicles, pedestrians, and other targets switch between multiple cameras, the system maintains continuous target IDs and trajectories without breaking at camera boundaries. In panoramic or 3D views, a single vehicle traveling from one end of a road segment to the other always maintains a complete trajectory.

Function 02

Panoramic Main View

Multiple intersection and road segment cameras stitched into one continuous panoramic video, allowing operators to grasp overall traffic flow, congestion distribution, and anomaly locations without switching windows.

Function 03

3D Real-Scene Traffic Situational Display

Real video textures overlaid on 3D intersection models create a 3D traffic scene. Lane occupancy, queue lengths, and incident positions are intuitively presented in 3D space with multi-angle viewing support.

Function 04

Event Alerts & Playback

Anomalies such as congestion, wrong-way driving, illegal parking, and accidents are highlighted on panoramic or 3D views. Supports panoramic historical review by time, location, and event type to reconstruct incident processes.

Feature List

FeatureSupported
Real-time stitching of multiple intersection/road segment cameras into one panoramic video✓
3D intersection modeling for detailed 3D traffic scenes✓
Real-time panoramic video texture mapping onto 3D models — video & 3D fusion✓
Continuous cross-camera target tracking with uninterrupted vehicle/pedestrian trajectories✓
AR annotation of lanes, intersections, event alerts, and target trajectories✓
Automatic detection and alerting for congestion, wrong-way driving, illegal parking, and accidents✓
Panoramic historical review by time, location, and event type✓
Synchronized panoramic main view and local picture-in-picture coordination✓
Support for large-screen display, B/S player, and video stream output✓
Integration with existing NVR, VMS, and traffic management platforms✓

Solution Value

✓

Upgrade from fragmented N-grid monitoring to continuous panoramic + 3D real scene — grasp overall traffic conditions on one screen

✓

Cross-camera continuous tracking keeps vehicle trajectories complete, thoroughly solving target disconnection at camera boundaries

✓

3D fusion provides three-dimensional spatial awareness — incident locations and lane status intuitively displayed in 3D scenes

✓

Anomalies highlighted directly on panoramic/3D views, reducing detection and response time

✓

Panoramic historical review supports incident reconstruction, providing complete video evidence for accident analysis and law enforcement

✓

Reuse existing cameras and monitoring platforms for phased expansion by intersection and road segment

Get the Traffic Panoramic Video System Solution

Supporting intersection location assessment, video stitching debugging, 3D modeling, cross-camera tracking configuration, and platform commissioning
