Power station business hall video and 3D fusion
Back to Industry SolutionsIndustry Solutions · BUSINESS HALL PANORAMIC MONITORING

Power Station / Business Hall Panoramic Video Solution

Video Stitching + Video & 3D Fusion · Upgrade Legacy Monitoring and Digital Twin to Real-Scene Twin

Designed for power stations, bank branches, government service halls, and various service outlets. The system reuses existing cameras, N-grid monitoring platforms, and virtual digital twin systems. Through multi-camera video stitching and real-time 3D video projection, it unifies outdoor courtyards, business halls, passages, and key equipment into a viewable, locatable, and reviewable panoramic fusion display.

N-Grid
Legacy Upgrade
3D
Video Fusion
In/Out
Full Scene Connectivity
Reusable
Multi-Type Halls

Industry Pain Points

01
Fragmented Multi-Grid Layout

Business halls, corridors, courtyards, and entrances are dispersed across multiple monitoring windows, breaking target movement trajectories and requiring constant screen switching.

02
Static Digital Twin

Existing digital twin systems primarily use virtual models and point maps, lacking real-time video textures — on-site changes cannot be mapped to the 3D space.

03
Indoor/Outdoor Disconnect

Outdoor areas, lobbies, stairways, and back offices are often covered by different cameras with discontinuous spatial relationships, reducing efficiency in positioning and review.

04
Difficult System Upgrade

Existing monitoring platforms, NVRs, and 3D systems have been running long-term; rebuilding is costly, requiring fusion capabilities to be overlaid on legacy systems.

Solution Overview

Real Scene Twin

Not just video stitching — truly integrating video into 3D space

The power station/business hall scenario requires solving both the traditional N-grid fragmentation issue and the existing digital twin problem of "looking 3D but lacking real on-site footage." This solution uses real-time video as the foundation, through stitching, spatial calibration, and 3D projection, enabling monitoring feeds, 3D models, and business information to coordinate within the same space.

✓

Multi-Camera Video Stitching

Stitches camera feeds from courtyards, entrances, business halls, and passages into a continuous panoramic view based on real spatial relationships.

✓

Video & 3D Fusion

Projects real-time video onto the 3D model of the power station or business hall, upgrading the virtual digital twin into a real-scene twin that reflects on-site changes.

✓

Legacy System Upgrade

Compatible with existing N-grid monitoring, NVR/VMS, and digital twin platforms, accessible gradually via SDK, plugins, or standalone visualization pages.

✓

Cross-Industry Reusability

The same approach can extend to bank branches, government service halls, telecom centers, service outlets, and corporate reception areas.

Upgrade Paths

N-Grid Monitoring → One-Screen Panorama

Retain existing camera positions. Through calibration, distortion correction, view unification, and real-time stitching, transform fragmented monitoring views into a continuous field of view.

✓Multi-camera integration
✓Real-time stitching & fusion
✓Key point AR annotation
✓Panoramic playback & event review

Virtual Digital Twin → Real-Scene Twin

Overlay real video textures, camera frustums, and spatial tags on existing 3D models for unified display of models, video, and business data.

✓3D model spatial registration
✓Real-time video projection fusion
✓Indoor/outdoor scene coordination
✓Business system & alert overlay

Use Cases

01

Power Station Courtyard

Fused display of outdoor entrances, parking areas, building facades, and equipment zones for security patrols and vehicle/personnel access management.

02

Business Hall

Video and 3D model fusion showing live status of counters, waiting areas, self-service machines, and customer flow.

03

Bank Branch

Unified visual management of bank branch counters, waiting areas, VIP rooms, self-service zones, and entrances.

04

Government/Telecom Hall

Supports panoramic video systems and 3D spatial presentation for service halls, reception desks, queuing areas, and back passages.

Case Study

01

Power Station / Business Hall Real-Scene Twin Monitoring Upgrade

This case uses the same power station to demonstrate the complete upgrade journey from original N-grid monitoring, to outdoor panoramic fusion, to business hall video and 3D fusion. The system retains existing cameras and monitoring platforms while integrating real video into 3D space, forming an integrated real-scene monitoring view for business halls, courtyards, and passages.

01

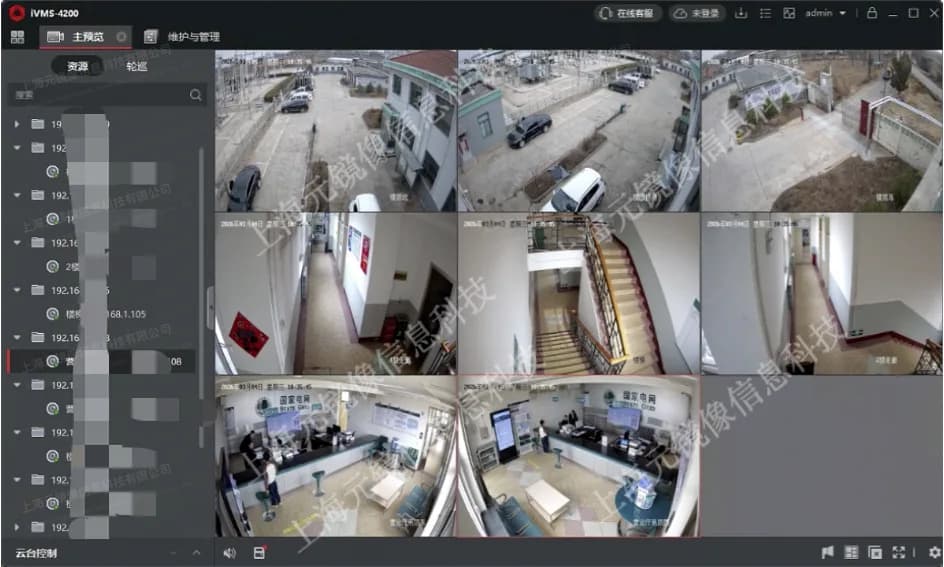

Before Stitching: Traditional N-Grid Monitoring

The power station's original monitoring displayed in N-grid format, with outdoor areas, corridors, stairs, and business hall split across multiple windows, making personnel movement and spatial relationships difficult to assess continuously.

N-grid monitoring before power station stitching
Before · N-Grid Monitoring System
02

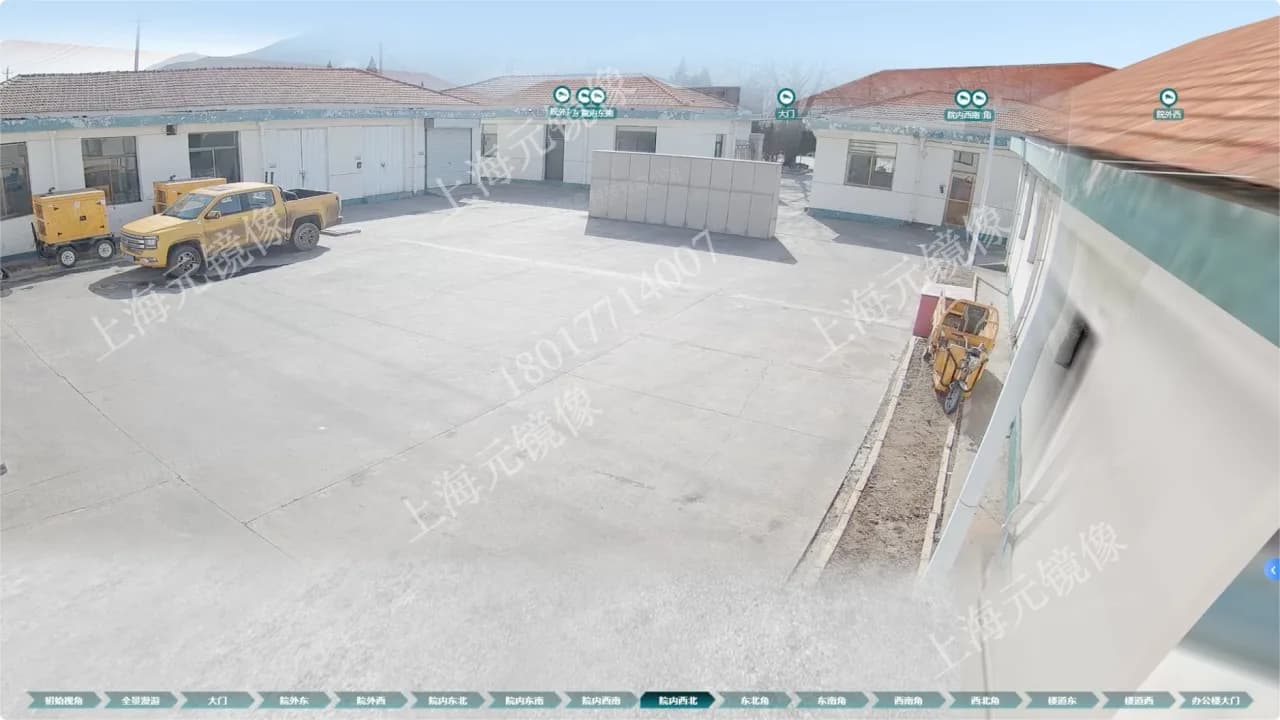

Outdoor: Courtyard Video & Spatial Fusion

Multiple courtyard camera feeds fused into a continuous outdoor view, with spatial tags for entrances, passages, and building access points to help managers quickly locate on-site positions.

Power station outdoor video fusion panoramic view
Outdoor · Fusion Panorama
03

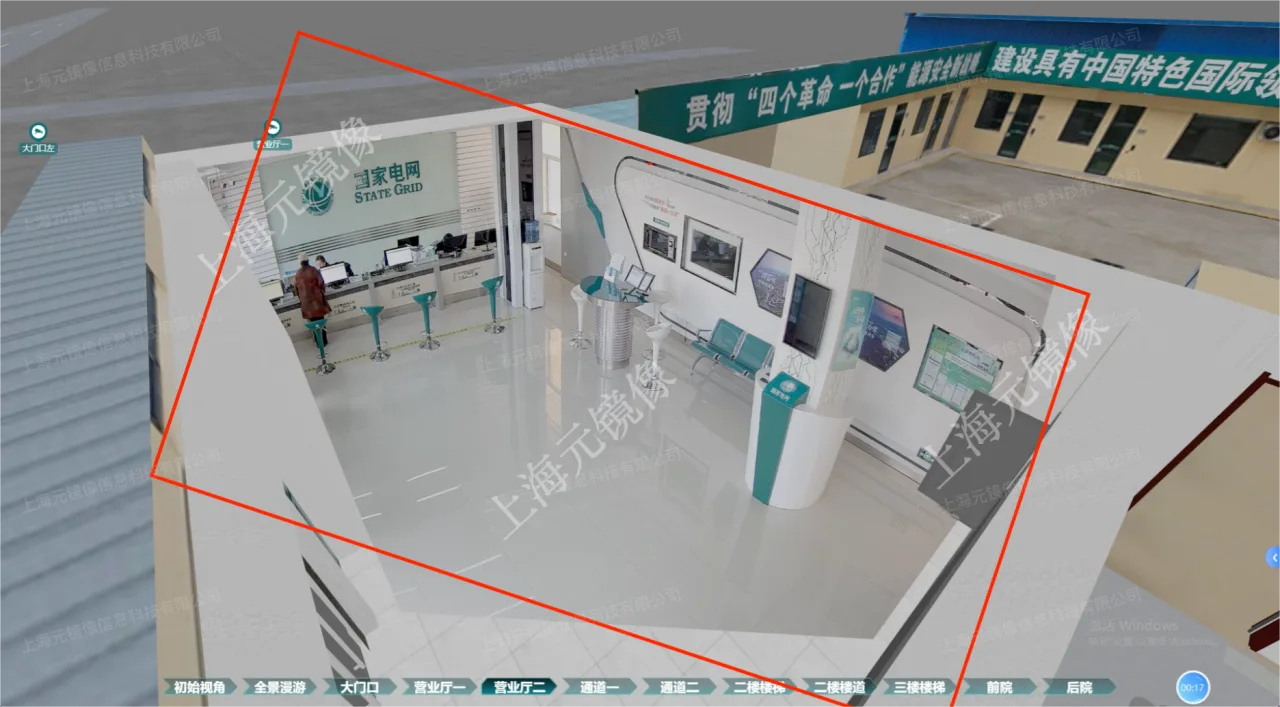

Business Hall: Video & 3D Fusion

Real-time business hall video is projected onto the 3D model, with counters, waiting areas, self-service equipment, and entrances presented in one real-scene twin view — the core upgrade capability of this case.

Power station business hall video and 3D fusion
3D Fusion · Video & 3D Integration

Feature List

FeatureSupported
Support for existing N-grid monitoring feed integration and upgrade✓
Outdoor multi-camera stitching into a continuous panoramic view✓
Real-time business hall video fusion with 3D models✓
Camera position, entrance, window, passage, and equipment tag overlay✓
Existing virtual digital twin system integration and enhancement✓
Coordinated switching between panoramic view, 3D view, and local camera feeds✓
Alert point positioning and highlighting in 3D space✓
Video playback, historical trajectory review, and event evidence collection✓
Integration with NVR, VMS, digital twin platforms, and business management systems✓
Replicable deployment across power stations, banks, government halls, and telecom centers✓

Solution Value

✓

Upgrade from fragmented N-grid monitoring to a continuous panoramic view, reducing operator cognitive load

✓

Provide existing virtual digital twin systems with real-time video capabilities — on-site changes map directly to 3D space

✓

Unified display of outdoor courtyards and indoor business halls, reducing cross-screen and cross-system search costs

✓

Complete monitoring and 3D platform upgrades without large-scale replacing existing systems

✓

Improve service hall security patrol, operations management, event review, and remote dispatch efficiency

✓

Form a replicable business hall real-scene twin solution that can be quickly deployed to bank branches and similar outlets

Get the Power Station / Business Hall Panoramic Video Solution

Supporting on-site location assessment, legacy monitoring integration, 3D model registration, video fusion debugging, and platform integration delivery
