Indoor Panoramic Video Solution
Fisheye Correction · 3D Fusion · 360° Free Viewing
Designed for small offices, meeting rooms, prison cells and other indoor scenarios. The system corrects fisheye distortion from a single camera and fuses it with a 3D spatial model, enabling 360° real-time rotation viewing from any angle, completely eliminating surveillance blind spots and greatly improving indoor spatial awareness.
1CH
One Fisheye Covers All
360°
Any Angle View
3D
Spatial Fusion
Zero Blind Spots
Full Coverage
Industry Pain Points
01
Fisheye Distortion
A single fisheye camera covers a wide area, but the image is severely distorted with edge targets deformed, making it unusable directly for identification and analysis.
02
Spatial Fragmentation
Traditional multi-camera setups display independently; operators must switch between multiple windows, making it hard to build complete spatial awareness.
03
Persistent Blind Spots
Indoor corners and column obstructions create surveillance blind spots. A single view cannot cover the entire area, hiding safety risks.
04
Difficult Post-Event Review
Playback requires searching through multiple recordings individually, making event reconstruction inefficient and prone to missing key details.
Solution Overview
Indoor Panoramic · Fisheye Correction + 3D Fusion
One Fisheye Video, Building a 3D Indoor Panoramic View
Centered on fisheye correction and 3D fusion, the system corrects distortion from a single fisheye camera and fuses it with a 3D indoor spatial model, generating an immersive panoramic view viewable from any 360° angle. Operators can freely switch viewing angles in the 3D view, completely eliminating traditional surveillance blind spots.
✓
Fisheye Correction + 3D Fusion
Correct fisheye distortion and fuse with 3D spatial models to generate an immersive panoramic view viewable from any angle.
✓
360° Free Viewing
Operators can freely rotate the view in 3D space to observe the indoor scene from any direction, completely eliminating blind spots.
✓
One Fisheye Covers the Room
A single fisheye camera covers small offices or meeting rooms. After correction, the image is clear and natural, with accurate target identification.
✓
Real-Time Processing, Instant Ready
Fisheye correction and 3D fusion are completed in real time, outputting standard video streams compatible with existing surveillance platforms and recording systems.
Effect Comparison
01

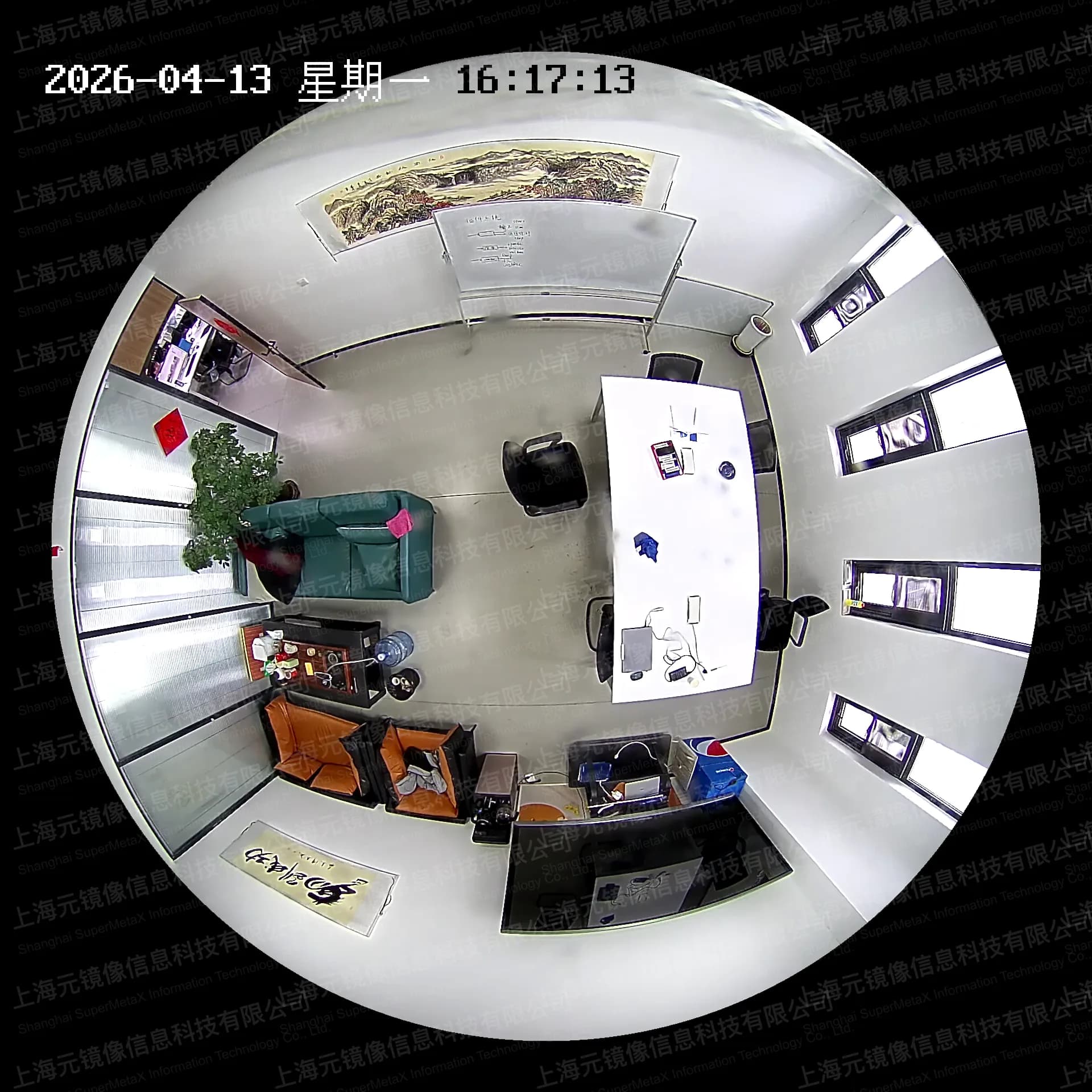

Original Fisheye Video
A single fisheye camera covers a small office. The image appears as a circular fisheye with edge targets severely deformed. Wide field of view but not directly usable for target identification and spatial analysis.
02

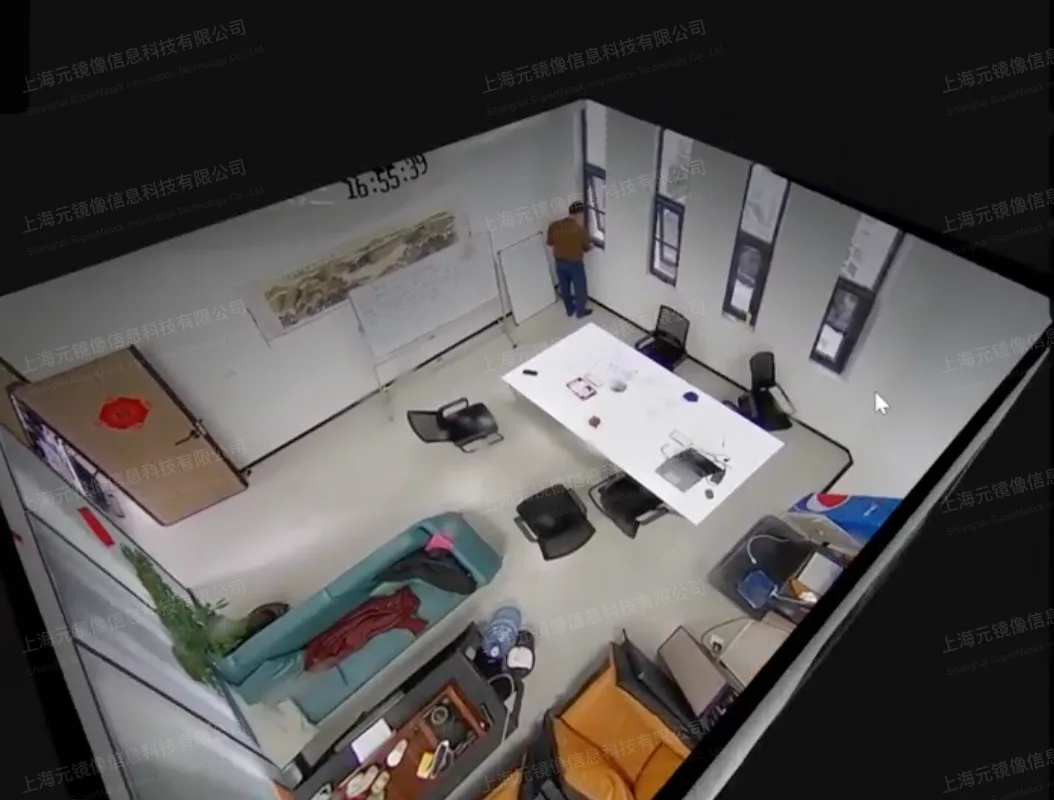

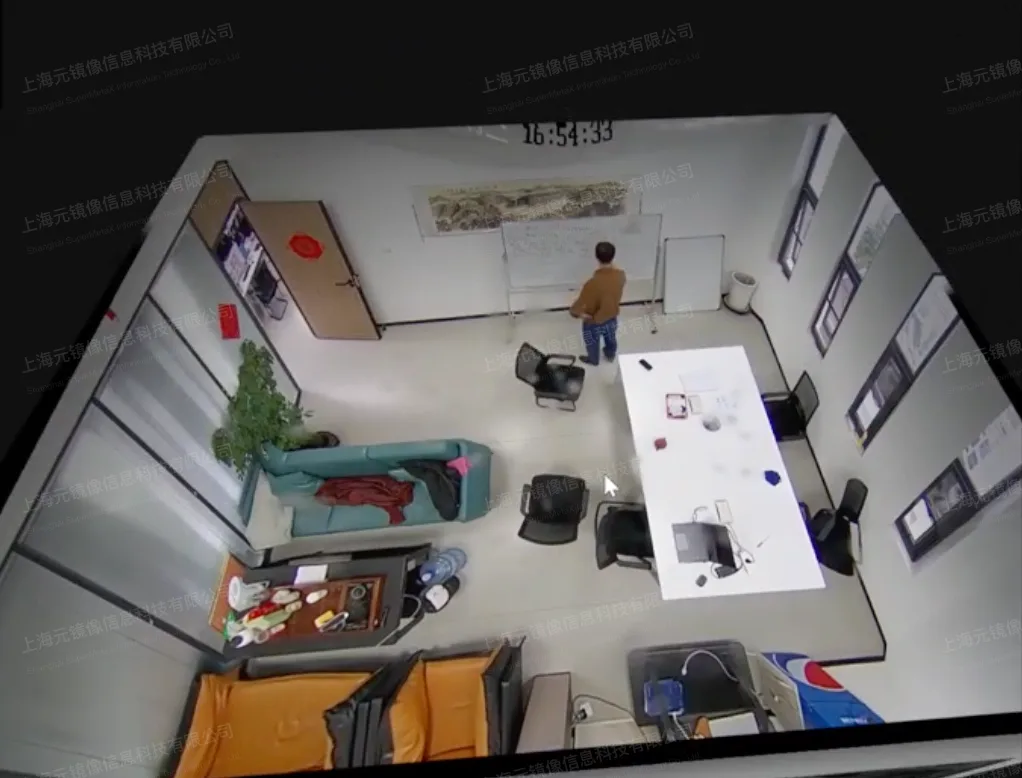

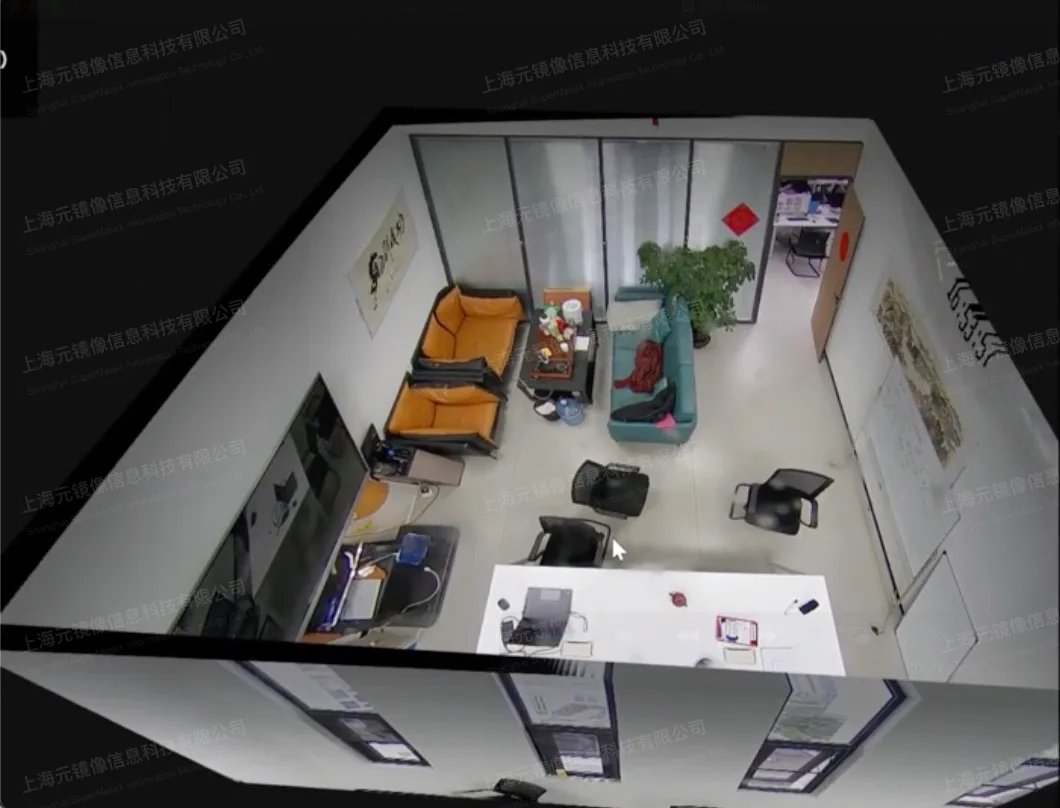

Fisheye Correction + 3D Fusion Effect (Multi-View)
After distortion correction and 3D fusion, the indoor panorama can be viewed from any angle. The three images below show rendering results from different perspectives. Operators can rotate to any angle in real time.
Technical Architecture
Processing Pipeline
Four-Layer Processing Pipeline
From fisheye capture to 3D fusion output, the entire process runs in real time. A single fisheye camera is deployed on the indoor ceiling. After calibration, distortion correction, and 3D fusion, it outputs a 360° interactive panoramic view while maintaining compatibility with existing surveillance platforms.
01
Fisheye Capture
Deploy a single fisheye camera on the indoor ceiling or corner to cover the entire area.
02
Distortion Correction
Calibrate and correct the fisheye image to restore true spatial proportions.
03
3D Fusion
Fuse the corrected image with a 3D spatial model to build an interactive panoramic view.
04
Multi-View Output
Support real-time rendering from any 360° angle, outputting standard video streams or interactive interfaces.
Use Cases
01
Small Office
Single fisheye covers the entire office. After correction, 360° view of personnel distribution and behavior.
02
Meeting Room
Complete panoramic recording of meeting rooms, supporting playback from any angle to reconstruct meeting details for compliance archiving.
03
Prison Cell
Cover the entire cell, eliminating corner blind spots, real-time awareness of personnel location and behavior, improving security control.
04
Cell Washroom
Panoramic coverage of washroom areas ensures no blind spot monitoring while supporting privacy masking.
05
Interrogation Room
Complete indoor panoramic recording supporting multi-angle playback for judicial evidence and post-event review compliance.
06
Hospital Ward
Panoramic video system monitors patient status; nurses can remotely view any angle, improving care response efficiency.
07
Bank Lobby
Cover counters and waiting areas. Combined with 3D view, quickly locate event positions, improving security response speed.
08
Retail Store
Panoramic view of customer flow distribution and shelf status, supporting heatmap analysis for display optimization and loss prevention.
Feature List
| Feature | Supported |
|---|---|
| Single fisheye real-time distortion correction, restoring true spatial proportions | ✓ |
| Fisheye corrected image fused in real time with 3D model | ✓ |
| Support 360° any-angle real-time rotation viewing | ✓ |
| Output standard video stream, compatible with mainstream surveillance platforms and NVR | ✓ |
| Support multi-view synchronized recording and playback by view angle | ✓ |
| Low-latency real-time processing meeting surveillance requirements | ✓ |
| Support privacy area masking | ✓ |
| Integrate with existing video management platforms and alert linkage systems | ✓ |
Value Proposition
✓
Single fisheye covers the entire area, reducing device count and deployment costs
✓
360° no blind spot monitoring, completely eliminating corner and occlusion safety risks
✓
3D fused view enhances spatial awareness, operators quickly locate event positions
✓
Multi-view recording archiving, post-event traceability efficiency greatly improved
✓
Applicable to diverse scenarios from small offices to prison cells and hospital wards
Get the Indoor Panoramic Video Solution
Supports on-site assessment, fisheye calibration, 3D modeling, and system integration
