Laboratory panoramic video and 3D fusion
Back to Industry SolutionsLABORATORY PANORAMIC VIDEO

Laboratory Panoramic Video Solution

Video & 3D Fusion · UWB Real-Time Positioning · Panoramic Blind-Spot-Free Coverage

Designed for laboratories, factory workshops, power equipment rooms, and other high-value indoor scenarios. The system fuses panoramic video into the 3D spatial model in real time and integrates UWB ultra-wideband positioning to display personnel precise positions in the 3D scene, achieving unified situational awareness of video, space, and personnel information.

3D Fusion
Video & 3D Overlay
UWB
Centimeter-Level Positioning
Panorama
Blind-Spot-Free
Real-Time
Dynamic Position Updates

Industry Pain Points

01
Blind Spots

A single camera cannot cover the entire laboratory, leaving key operation areas with monitoring blind spots and hidden safety risks.

02
Personnel Blindness

Personnel positions rely on manual patrols; unable to be aware of personnel distribution in real time, leading to lagging response in emergencies.

03
3D Disconnection

Traditional surveillance views and 3D models are independent; unable to fuse real video with spatial information in one view.

04
Inefficient Management

Multi-camera feeds display separately; managers must frequently switch windows, unable to form overall situational awareness.

Solution Overview

Laboratory Panoramic + 3D Fusion + UWB Positioning

Real-Time Fusion of Video, 3D, and Personnel Positioning

Centered on video and 3D fusion, the system stitches multiple laboratory cameras into a panoramic video and overlays it onto the 3D spatial model in real time, while integrating UWB base station data to map each person's real-time coordinates onto the 3D scene. Managers can view the complete laboratory video, spatial structure, and real-time personnel positions in a single interface.

✓

Video & 3D Fusion

Fuse laboratory panoramic video into the 3D scene in real time, seamlessly overlaying real footage onto the spatial model for a complete live twin view.

✓

UWB Real-Time Personnel Positioning

Integrate UWB ultra-wideband positioning system to display each person's precise position in the 3D scene in real time, with centimeter-level accuracy.

✓

Panoramic Blind-Spot-Free Coverage

Stitch multiple cameras into one continuous panoramic video, eliminating monitoring blind spots and presenting the full laboratory space.

✓

Cross-Industry Universal Architecture

The same architecture can be reused in factories, power rooms, warehouses, and other high-value indoor scenarios with flexible deployment.

Laboratory video and 3D fusion with UWB personnel real-time positioning
Laboratory video and 3D fusion effect · Real-time personnel positions displayed in 3D scene (UWB positioning)

Fusion Effect Showcase

01

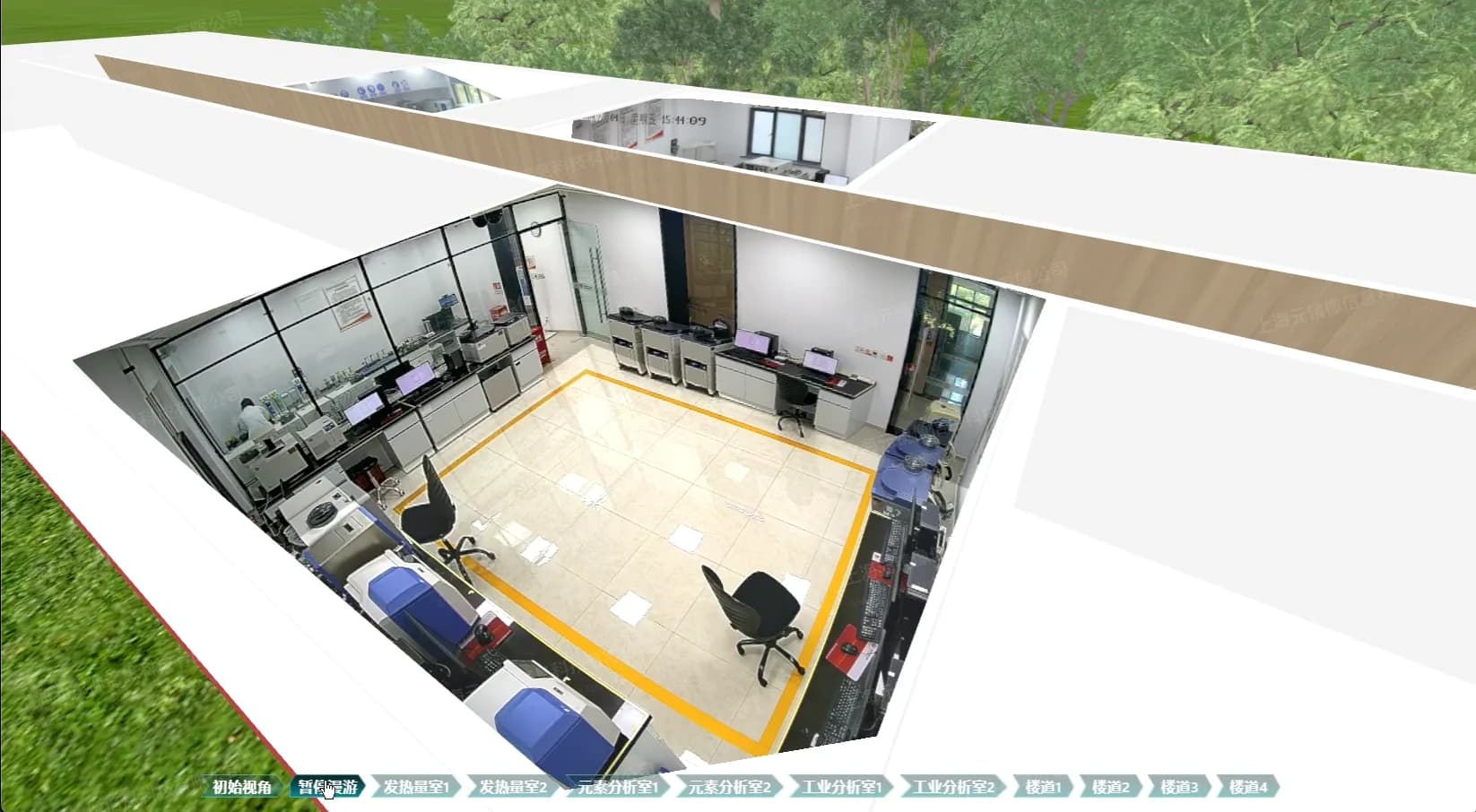

Lab 1 · Video & 3D Fusion Effect

Real camera footage fused into the 3D spatial model in real time; equipment layout closely matches the actual scene.

Lab 1 · Video & 3D Fusion Effect
Lab 1 · Video & 3D Fusion Effect
02

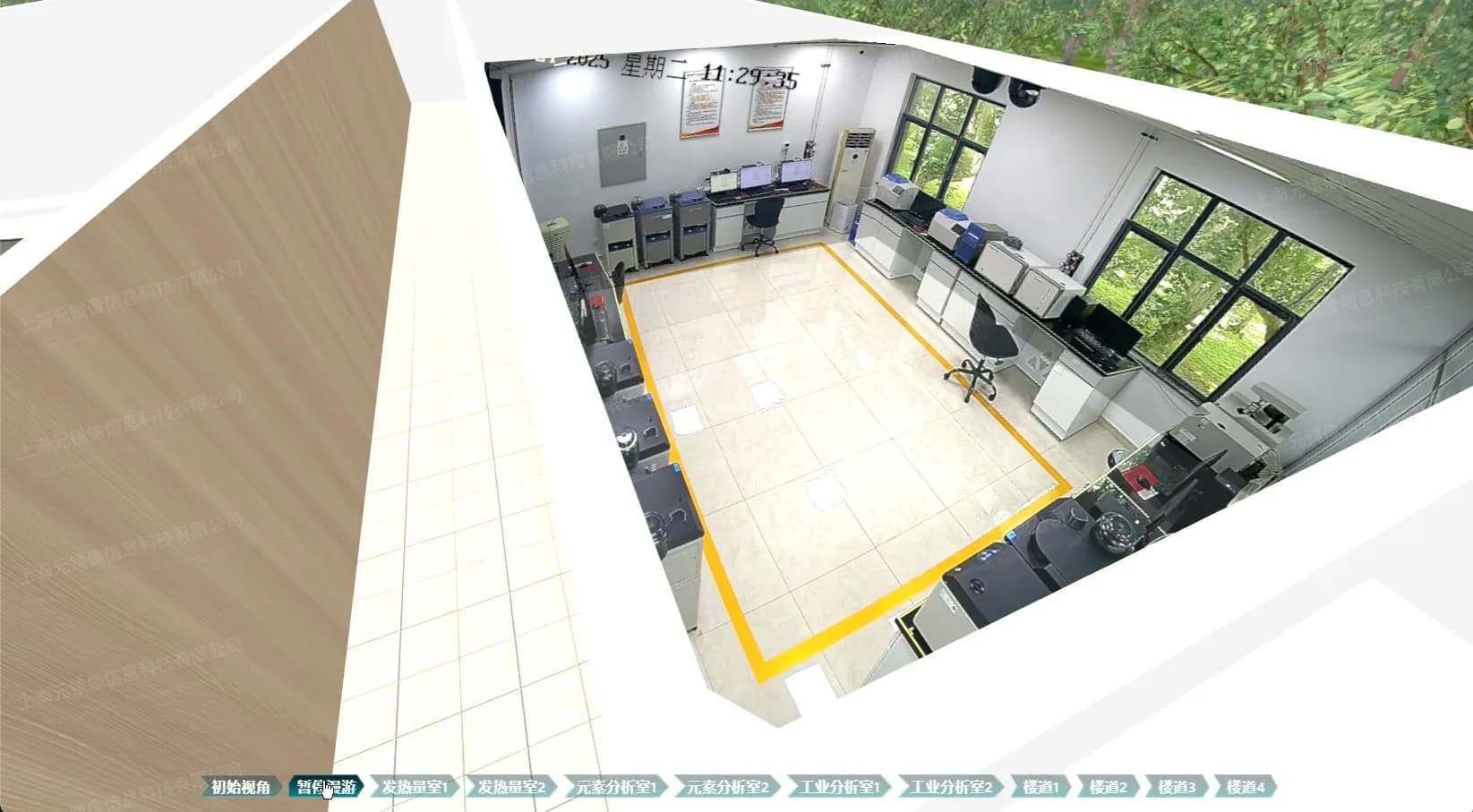

Lab 2 · Video & 3D Fusion Effect

Multi-camera video stitched and fused into the 3D scene, covering the full laboratory space with no monitoring blind spots.

Lab 2 · Video & 3D Fusion Effect
Lab 2 · Video & 3D Fusion Effect

System Architecture

System Architecture

Four-Layer Fusion Architecture, Unified Video & Positioning Display

The system consists of four layers: panoramic video capture, 3D scene construction, UWB positioning integration, and fusion display. Each layer deploys independently with standard interface integration. The UWB module is optional; video and 3D fusion can be used standalone.

01

Panoramic Video Capture

Multiple cameras cover the entire laboratory; complete calibration, distortion correction, and stitch seam fusion.

02

3D Scene Construction

Build a 3D model based on the laboratory space as the carrier foundation for video fusion and positioning information.

03

UWB Positioning Integration

Access UWB base station data, calculate real-time personnel coordinates, and map them to the 3D scene.

04

Fusion Display Output

Three layers — video, 3D model, and personnel positions — overlay in real time, outputting uniformly to the management platform.

Use Cases

01

Laboratory Safety Management

Real-time awareness of personnel distribution in the lab; automatic alerts when approaching dangerous areas, improving safety control.

02

Factory & Workshop

Real-time personnel positioning fused with panoramic video for workstation management, anomaly behavior detection, and production line inspection.

03

Power Equipment Room

Real-time visual access to high-value equipment areas; quickly locate fault points and operators via the 3D model.

04

Warehouse & Logistics

Fused display of warehouse personnel and forklift positions in real time, optimizing operation paths and reducing collision risks.

Feature List

FeatureSupported
Real-time stitching of multiple cameras into one panoramic video✓
Panoramic video fused with 3D scene in real time✓
Integrate UWB positioning system with centimeter-level accuracy✓
Display real-time personnel position annotations in 3D scene✓
Support dangerous area electronic fencing and boundary crossing alerts✓
Historical trajectory playback, searchable by personnel or time period✓
Open API for integration with existing security management platforms✓

Value Proposition

✓

Video and 3D fusion eliminate information silos; managers get complete situational awareness in a single interface

✓

UWB positioning accuracy far exceeds traditional video analysis; personnel locations are reliable in real time, greatly improving response efficiency

✓

Panoramic blind-spot-free coverage replaces scattered multi-channel monitoring, reducing system complexity and maintenance costs

✓

Universal architecture reused across industries; laboratory solution can be quickly migrated to factory, power, and other scenarios

Get the Laboratory Panoramic Video Solution

Supports site survey, 3D modeling, UWB positioning deployment, and system integration
